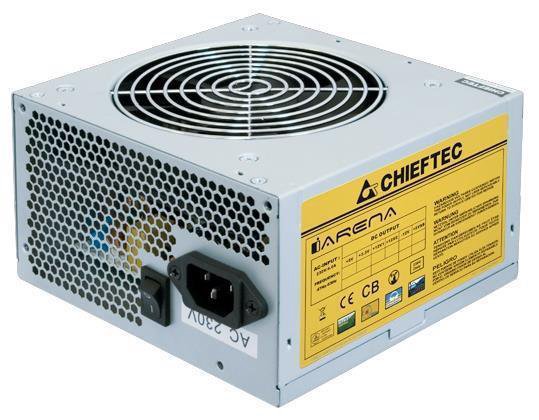

Maitinimo šaltinis CHIEFTEC GPA-700S
Tik internetu
Kaina
48,99 €
Kaina
48,99 €
Šią prekę rasite tik internete.
Į norų sąrašą
Galimi pristatymo būdai
Pristatymas kurjeriu
Standartinis pristatymas
3,49 €
lapkričio 18-23 d.
Jums būtinai prireiks
Maitinimo šaltinis CHIEFTEC GPA-700S
48,99 €
TOPO KLUBO nariams
0,00 €
Perkama prekė
Vidinis kietasis diskas SSD PATRIOT P310 240GB M2 2280 PCIe SSD NVME
73,49 €
TOPO KLUBO nariams
0,00 €
1
Vidinis kietasis diskas HDD SILICON POWER SILICON POWER SP256GBSS3A55M28
48,49 €
TOPO KLUBO nariams
0,00 €
1
TOPO KLUBO nariams
203,95 €
Rinkinio kaina
203,95 €
TOPO KLUBO nariams
undefined
Į krepšelį
Dažnai perkama kartu
Item 1 of 25
Prekės aprašymas
ATX-12V V.2.3 PSU with 12 cm fan, Active PFC, 230V only
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Chieftec iArena GPA-700s maitinimo blokas 700 W 20+4 pin ATX PS/2 Sidabras
Slide 1 of 3
Brand:
Chieftec
Produkto šeima:
iArena
Produkto pavadinimas:
GPA-700s
Prekės kodas:
GPA-700S
EAN/UPC kodas:
4710713233225
- 700 W 200 - 240 V 47 - 63 Hz
- Motininės plokštės maitinimo jungtis: 20+4 pin ATX
- Kompiuteris / serveris PS/2
- Aktyvus 12 cm
- Sidabras
Specifikacijos
Energijos valdymas
Bendroji galia
The total power that is needed by the device
700 W
AC įėjimo įtampa
The voltage of the AC electricity that is inputted into the product.
200 - 240 V
AC įėjimo dažnis
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
47 - 63 Hz
Įvesties srovė
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
5 A
Galios koeficientas
The ratio of the real power consumed by the device to the apparent power supplied to it, expressed as a value between 0 and 1.
0,9
Galios koeficiento pataisos (PFC) tipas
Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.
Aktyvus
Kompleksinė galia (+3,3 V)
The total power output available on the +3.3V rail, measured in W.
130 W
Kompleksinė galia (+12 V)
The total maximum power output available across all +12V rails, measured in W.
648 W
Kompleksinė galia (+5V)
The total maximum power output available on the +5V rail, measured in W.
130 W
Kompleksinė galia (–12 V)
The maximum total power that can be delivered on the -12V rail, measured in W.
3,6 W
Kompleksinė galia (+5 VSB)
The total maximum power output available across the combined +5V and +5Vsb rails, measured in W.
12,5 W
Didžiausia išėjimo įtampa (+3,3 V)
The maximum electrical current that can be delivered on the +3.3V rail, measured in A.
22 A
Didžiausia išėjimo įtampa (+12 V)
The maximum electrical current that the device can provide on the +12V rail, measured in A.
50 A
Didžiausia išėjimo įtampa (+5 V)
The maximum electrical current that can be delivered on the +5V rail, measured in A.
22 A
Didžiausia išėjimo įtampa (–12 V)
The maximum electrical current that can be delivered on the -12V rail, measured in A.
0,3 A
Didžiausia išėjimo įtampa (+12 VSB)
The maximum electrical current that can be delivered on the +5Vsb standby rail, measured in A.
2,5 A
Efektyvumas
The percentage of input energy that is converted into useful work or output, rather than being lost as heat or waste (e.g. 92%).
80%
Maitinimo apsaugos ypatybės
Features that protect the device against power problems e.g. overload.
Apsauga nuo per didelės įtampos, Apsauga nuo perkrovos, Trumpasis jungimas, Minimaliosios įtampos apsauga
Ryšys
Motininės plokštės maitinimo jungtis
The way in which the motherboard is connected to the power supply.
20+4 pin ATX
Motininės plokštės maitinimo kabelio ilgis
The total length of the cable used to provide power to the motherboard, measured in mm.
50 cm
SATA elektros jungčių skaičius
The total number of available power interfaces designed to provide electricity to SATA-compatible drives or peripherals.
6
Periferinė (Molex) galios jungtis (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
2
Periferinio („Molex“) maitinimo kabelio ilgis
The total length of the peripheral power cable using a Molex connector, measured in mm (e.g., 450).
500, 650, 800 mm
PCI „Express“ maitinimo jungtys (6 + 2 kontaktai)
The number of 6+2 pin power connectors available to provide dedicated power to high-performance expansion cards.
2
Ryšys
CPU maitinimo jungtis (4 + 4 kaisčiai)
Indicates whether the product includes or supports a 4+4 pin power connector for the central processing unit.
CPU maitinimo laido ilgis
The total length of the cable used to provide power to the processor, measured in mm.
55 cm
ATX maitinimo jungtis (20 + 4 kaisčiai)
Indicates whether the product includes or supports a 20+4 pin ATX power connector.
Floppy įrenginio maitinimo jungtis
The number of 4-pin power connectors available to provide electricity to compatible legacy devices.
1
Floppy diskelio disko jungtis
Indicates whether the product has a dedicated power or data interface for connecting a 3.5" floppy disk drive.
Perdavimo laidu tipas
Specifies the design of the internal wiring, indicating whether cables are permanently attached or can be removed (e.g. Fully-Modular).
Ne modulinis
Veikimo charakteristikos
Paskirtis
What the product is used for.
Kompiuteris / serveris
Maitinimo bloko (PSU) formos koeficientas
The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).
PS/2
ATX versija
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions
2.3
Konstrukcija
Produkto spalva
The colour e.g. red
Sidabras
Aušinimo tipas
The method used to cool the device or to cool the air around the device.
Aktyvus
Ventiliatoriaus skersmuo
The size of the fan
12 cm
Ventiliatorių skaičius
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 ventiliatorius(iai / ių)
Ventiliatoriaus vieta
Specifies the physical position of the cooling fan on the unit (e.g. Front, Rear, Side).
Viršus
Sertifikatai
Atitikties sertifikatai
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CB, CE, EAC
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
140 mm
Ilgis
The distance from the front to the back of something.
150 mm
Aukštis
The measurement of the product from head to foot or from base to top.
87 mm
Svoris
Weight of the product without packaging (net weight). If possible
1,44 kg
Pakuotės duomenys
Paketo svoris
Weight of the packaged product.
1,57 kg
Pakuotės tipas
The type of product package e.g. box.
„Box“
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906015299 | ||
| Barkodas | 4710713233225 | ||
| Gamintojo kodas | GPA-700S | ||
| Gamintojas | CHIEFTEC | ||
| Garantija (mėn.) | 24 | ||
| Papildoma informacija | ATX-12V V.2.3 PSU with 12 cm fan, Active PFC, 230V only | ||
