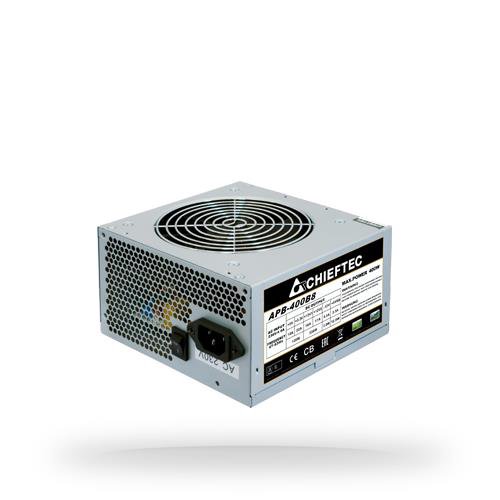

Maitinimo šaltinis CHIEFTEC APB-400B8

Prekės informacija
Maitinimo šaltinis CHIEFTEC APB-400B8
Kaina
35,99 €
Kaina
35,99 €
Šią prekę rasite tik internete.
Galimi pristatymo būdai
Pristatymas kurjeriu
3,99 €
lapkričio 6-11 d.
Pristatymas į paštomatą
lapkričio 6-11 d.
2,99 €
lapkričio 6-11 d.
2,99 €
lapkričio 6-11 d.
2,99 €
Jums būtinai prireiks
Maitinimo šaltinis CHIEFTEC APB-400B8
35,99 €
TOPO KLUBO nariams
0,00 €
Perkama prekė
Korpusas AKYGA AK35BK
18,99 €
TOPO KLUBO nariams
0,00 €
1
Keisti prekę
Vidinis kietasis diskas SSD PATRIOT P300P128GM28
51,99 €
TOPO KLUBO nariams
0,00 €
1
Keisti prekę
Vidinis kietasis diskas HDD SILICON POWER SILICON POWER SP256GBSS3A55M28
51,99 €
TOPO KLUBO nariams
0,00 €
1
Keisti prekę
Šakotuvas HUB Unitek H1208A USB-A/3x USB-A 2.0, USB-A 3.0
12,49 €
TOPO KLUBO nariams
0,00 €
1
Keisti prekę
TOPO KLUBO nariams
undefined
Rinkinio kaina
171,45 €
TOPO KLUBO nariams
undefined
Į krepšelį
Maitinimo šaltinis CHIEFTEC APB-400B8
4710713230552
999906003487
CHIEFTEC
35.99 €
EUR

Prekės aprašymas

*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.

Bendra informacija

Chieftec Value APB-400B8 maitinimo blokas 400 W 20+4 pin ATX PS/2 Sidabras
Chieftec Value APB-400B8 maitinimo blokas 400 W 20+4 pin ATX PS/2 Sidabras ProductImage
Slide 1 of 1
Chieftec Value APB-400B8 maitinimo blokas 400 W 20+4 pin ATX PS/2 Sidabras ProductImage
Chieftec Value APB-400B8 maitinimo blokas 400 W 20+4 pin ATX PS/2 Sidabras ProductImage
Chieftec Value APB-400B8 maitinimo blokas 400 W 20+4 pin ATX PS/2 Sidabras ProductImage
Brand: Chieftec
Produkto šeima: Value
Produkto pavadinimas: APB-400B8
Prekės kodas: APB-400B8
EAN/UPC kodas: 4710713230552
  • 400 W 200 - 240 V 47 - 63 Hz
  • Motininės plokštės maitinimo jungtis: 20+4 pin ATX
  • Kompiuteris / serveris PS/2 80 PLUS
  • 12 cm
  • Sidabras
Brochure Chieftec APB-400B8 (pdf)

Specifikacijos

Energijos valdymas
Bendroji galia
The total power that is needed by the device
400 W
AC įėjimo įtampa
The voltage of the AC electricity that is inputted into the product.
200 - 240 V
AC įėjimo dažnis
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
47 - 63 Hz
Įvesties srovė
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
3 A
Galios koeficientas
The ratio of the real power consumed by the device to the apparent power supplied to it, expressed as a value between 0 and 1.
0,9
Galios koeficiento pataisos (PFC) tipas
Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.
Aktyvus
Kompleksinė galia (+3,3 V)
The total power output available on the +3.3V rail, measured in W.
100 W
Kompleksinė galia (+12 V)
The total maximum power output available across all +12V rails, measured in W.
360 W
Kompleksinė galia (+5V)
The total maximum power output available on the +5V rail, measured in W.
100 W
Kompleksinė galia (–12 V)
The maximum total power that can be delivered on the -12V rail, measured in W.
3,6 W
Kompleksinė galia (+5 VSB)
The total maximum power output available across the combined +5V and +5Vsb rails, measured in W.
12,5 W
Didžiausia išėjimo įtampa (+3,3 V)
The maximum electrical current that can be delivered on the +3.3V rail, measured in A.
17 A
Didžiausia išėjimo įtampa (+12 V)
The maximum electrical current that the device can provide on the +12V rail, measured in A.
30 A
Didžiausia išėjimo įtampa (+5 V)
The maximum electrical current that can be delivered on the +5V rail, measured in A.
16 A
Didžiausia išėjimo įtampa (–12 V)
The maximum electrical current that can be delivered on the -12V rail, measured in A.
0,3 A
Didžiausia išėjimo įtampa (+12 VSB)
The maximum electrical current that can be delivered on the +5Vsb standby rail, measured in A.
2,5 A
Maitinimo apsaugos ypatybės
Features that protect the device against power problems e.g. overload.
Apsauga nuo per didelės įtampos, Apsauga nuo perkrovos, Trumpasis jungimas, Minimaliosios įtampos apsauga
Ryšys
Motininės plokštės maitinimo jungtis
The way in which the motherboard is connected to the power supply.
20+4 pin ATX
Motininės plokštės maitinimo kabelio ilgis
The total length of the cable used to provide power to the motherboard, measured in mm.
35 cm
SATA elektros jungčių skaičius
The total number of available power interfaces designed to provide electricity to SATA-compatible drives or peripherals.
3
SATA maitinimo kabelio ilgis
The total length of the SATA power cable, measured in mm (e.g., 550).
150, 350 mm
Periferinė (Molex) galios jungtis (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
2
Periferinio („Molex“) maitinimo kabelio ilgis
The total length of the peripheral power cable using a Molex connector, measured in mm (e.g., 450).
150, 350 mm
Ryšys
EPS maitinimo jungtis (4 + 4 kontaktai)
Indicates whether the product includes a 4+4 pin power connector.
PCI „Express“ maitinimo jungtys (6 + 2 kontaktai)
The number of 6+2 pin power connectors available to provide dedicated power to high-performance expansion cards.
1
PCI „Express“ galia kabelio ilgis
The total length of the PCI Express power cable, measured in mm.
35 cm
CPU maitinimo jungtis (4 + 4 kaisčiai)
Indicates whether the product includes or supports a 4+4 pin power connector for the central processing unit.
CPU maitinimo laido ilgis
The total length of the cable used to provide power to the processor, measured in mm.
35 cm
Floppy įrenginio maitinimo jungtis
The number of 4-pin power connectors available to provide electricity to compatible legacy devices.
1
Floppy diskelio disko jungtis
Indicates whether the product has a dedicated power or data interface for connecting a 3.5" floppy disk drive.
Perdavimo laidu tipas
Specifies the design of the internal wiring, indicating whether cables are permanently attached or can be removed (e.g. Fully-Modular).
Ne modulinis
Veikimo charakteristikos
Sertifikatas 80 PLUS
The energy efficiency rating, indicating the minimum percentage of power converted from the mains to the device (e.g., 80 PLUS Gold).
80 PLUS
Paskirtis
What the product is used for.
Kompiuteris / serveris
Maitinimo bloko (PSU) formos koeficientas
The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).
PS/2
ATX versija
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions
2.3
Konstrukcija
Produkto spalva
The colour e.g. red
Sidabras
Ventiliatoriaus skersmuo
The size of the fan
12 cm
Ventiliatorių skaičius
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 ventiliatorius(iai / ių)
Sertifikatai
Sertifikavimas
Specifies the official standards, safety approvals, or regulatory certifications the product has received.
80PLUS 230V EU
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
140 mm
Ilgis
The distance from the front to the back of something.
150 mm
Aukštis
The measurement of the product from head to foot or from base to top.
87 mm
Logistikos duomenys
Darniosios sistemos (DS) kodas
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
84733020

Specifikacija

Bendrosios charakteristikos:
Prekės kodas999906003487
Barkodas4710713230552
Gamintojo kodasAPB-400B8
GamintojasCHIEFTEC
Garantija (mėn.)24
Papildoma informacija<br /> The APB-400B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB T&Uuml;V, EAC amongst many others, it&rsq
