Prekės aprašymas
Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija

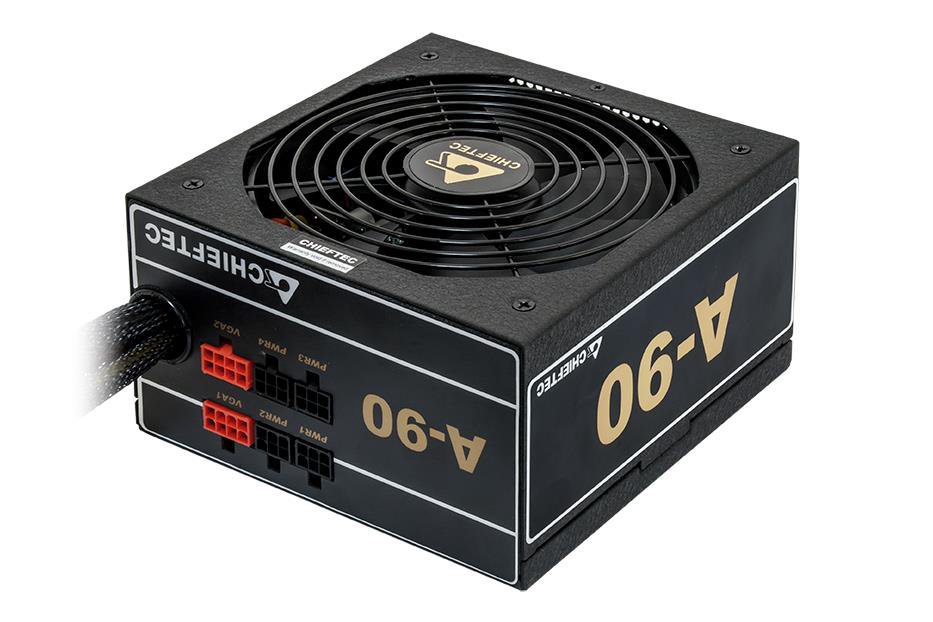

Chieftec GDP-750C maitinimo blokas 750 W 20+4 pin ATX PS/2 Juoda
Slide 1 of 4
Brand:
Chieftec
Produkto pavadinimas:
GDP-750C
Prekės kodas:
GDP-750C
EAN/UPC kodas:
4710713230842
- 750 W 200 - 240 V 47 - 63 Hz
- Motininės plokštės maitinimo jungtis: 20+4 pin ATX
- PC PS/2
- 14 cm
- Juoda
Specifikacijos
Energijos valdymas
Bendroji galia
The total power that is needed by the device
750 W
AC įėjimo įtampa
The voltage of the AC electricity that is inputted into the product.
200 - 240 V
AC įėjimo dažnis
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
47 - 63 Hz
Galios koeficientas
The ratio of the real power consumed by the device to the apparent power supplied to it, expressed as a value between 0 and 1.
0,9
Galios koeficiento pataisos (PFC) tipas
Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.
Aktyvus
Kompleksinė galia (+3,3 V)
The total power output available on the +3.3V rail, measured in W.
120 W
Kompleksinė galia (+12 V)
The total maximum power output available across all +12V rails, measured in W.
744 W
Kompleksinė galia (+5V)
The total maximum power output available on the +5V rail, measured in W.
120 W
Kompleksinė galia (+5 VSB)
The total maximum power output available across the combined +5V and +5Vsb rails, measured in W.
2,5 W
Didžiausia išėjimo įtampa (+3,3 V)
The maximum electrical current that can be delivered on the +3.3V rail, measured in A.
22 A
Didžiausia išėjimo įtampa (+12 V1)
The maximum electrical current that can be delivered on the +12V1 rail, measured in A.
62 A
Didžiausia išėjimo įtampa (+5 V)
The maximum electrical current that can be delivered on the +5V rail, measured in A.
22 A
Didžiausia išėjimo įtampa (–12 V)
The maximum electrical current that can be delivered on the -12V rail, measured in A.
0,3 A
Maitinimo apsaugos ypatybės
Features that protect the device against power problems e.g. overload.
Viršijus nuolatinę srovę, Apsauga nuo per didelės įtampos, Apsauga nuo perkaitimo, Apsauga nuo perkrovos, Trumpasis jungimas, Minimaliosios įtampos apsauga
Ryšys
Motininės plokštės maitinimo jungtis
The way in which the motherboard is connected to the power supply.
20+4 pin ATX
SATA elektros jungčių skaičius
The total number of available power interfaces designed to provide electricity to SATA-compatible drives or peripherals.
8
Periferinė (Molex) galios jungtis (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
3
EPS maitinimo jungtis (8-kaisčiai)
Indicates whether the product features an 8-pin EPS connector to provide dedicated power to the CPU.
Ryšys
PCI „Express“ maitinimo jungtys (6 + 2 kontaktai)
The number of 6+2 pin power connectors available to provide dedicated power to high-performance expansion cards.
4
Floppy įrenginio maitinimo jungtis
The number of 4-pin power connectors available to provide electricity to compatible legacy devices.
1
Perdavimo laidu tipas
Specifies the design of the internal wiring, indicating whether cables are permanently attached or can be removed (e.g. Fully-Modular).
Pusiau modulinis
Veikimo charakteristikos
Paskirtis
What the product is used for.
PC
Maitinimo bloko (PSU) formos koeficientas
The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).
PS/2
ATX versija
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions
2.3
Konstrukcija
Produkto spalva
The colour e.g. red
Juoda
Ventiliatoriaus skersmuo
The size of the fan
14 cm
Ventiliatorių skaičius
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 ventiliatorius(iai / ių)
Ventiliatoriaus vieta
Specifies the physical position of the cooling fan on the unit (e.g. Front, Rear, Side).
Viršus
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
160 mm
Ilgis
The distance from the front to the back of something.
150 mm
Aukštis
The measurement of the product from head to foot or from base to top.
87 mm
Logistikos duomenys
Darniosios sistemos (DS) kodas
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
84733020
Kitos savybės
Dažnio tolerancija
The maximum allowable deviation of the operating frequency from its nominal value, typically expressed as a percentage or in Hertz.
90%
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906002248 | ||
| Barkodas | 4710713230842 | ||
| Gamintojo kodas | GDP-750C | ||
| Gamintojas | CHIEFTEC | ||
| Garantija (mėn.) | 24 | ||
| Papildoma informacija | Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency | ||
