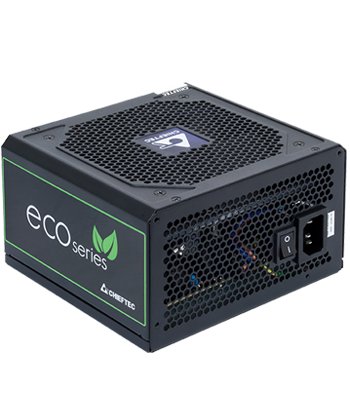

Maitinimo šaltinis CHIEFTEC GPE-700S
Išparduota
Įveskite el. pašto adresą, telefono nr. ir gaukite priminimą, kai prekė atsiras prekyboje.
Į norų sąrašą
Panašios prekės
Atsiimkite jau po 30 min.Item 1 of 3
Prekės aprašymas
The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Chieftec GPC-700S maitinimo blokas 700 W 24-pin ATX PS/2 Sidabras
Slide 1 of 3
Brand:
Chieftec
Produkto pavadinimas:
GPC-700S
Prekės kodas:
GPC-700S
EAN/UPC kodas:
4710713234161
4710713234208
- 700 W 230 V 50 Hz
- Motininės plokštės maitinimo jungtis: 24-pin ATX
- PC PS/2
- 12 cm
- Sidabras
Specifikacijos
Energijos valdymas
Bendroji galia
The total power that is needed by the device
700 W
AC įėjimo įtampa
The voltage of the AC electricity that is inputted into the product.
230 V
AC įėjimo dažnis
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50 Hz
Įvesties srovė
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
6.3 A
Galios koeficiento pataisos (PFC) tipas
Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.
Aktyvus
Kompleksinė galia (+3,3 V)
The total power output available on the +3.3V rail, measured in W.
130 W
Kompleksinė galia (+5 VSB)
The total maximum power output available across the combined +5V and +5Vsb rails, measured in W.
12,5 W
Didžiausia išėjimo įtampa (+3,3 V)
The maximum electrical current that can be delivered on the +3.3V rail, measured in A.
22 A
Didžiausia išėjimo įtampa (+12 V1)
The maximum electrical current that can be delivered on the +12V1 rail, measured in A.
52,5 A
Didžiausia išėjimo įtampa (+5 V)
The maximum electrical current that can be delivered on the +5V rail, measured in A.
22 A
Didžiausia išėjimo įtampa (–12 V)
The maximum electrical current that can be delivered on the -12V rail, measured in A.
0,3 A
Didžiausia išėjimo įtampa (+12 VSB)
The maximum electrical current that can be delivered on the +5Vsb standby rail, measured in A.
2,5 A
Maitinimo apsaugos ypatybės
Features that protect the device against power problems e.g. overload.
Apsauga nuo per didelės įtampos, Apsauga nuo perkrovos, Trumpasis jungimas, Minimaliosios įtampos apsauga
Ryšys
Motininės plokštės maitinimo jungtis
The way in which the motherboard is connected to the power supply.
24-pin ATX
SATA elektros jungčių skaičius
The total number of available power interfaces designed to provide electricity to SATA-compatible drives or peripherals.
6
Ryšys
Periferinė (Molex) galios jungtis (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
2
Perdavimo laidu tipas
Specifies the design of the internal wiring, indicating whether cables are permanently attached or can be removed (e.g. Fully-Modular).
Ne modulinis
Veikimo charakteristikos
Paskirtis
What the product is used for.
PC
Maitinimo bloko (PSU) formos koeficientas
The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).
PS/2
ATX versija
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions
2.3
Konstrukcija
Produkto spalva
The colour e.g. red
Sidabras
Ventiliatoriaus skersmuo
The size of the fan
12 cm
Ventiliatorių skaičius
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 ventiliatorius(iai / ių)
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
140 mm
Ilgis
The distance from the front to the back of something.
150 mm
Aukštis
The measurement of the product from head to foot or from base to top.
87 mm
Logistikos duomenys
Darniosios sistemos (DS) kodas
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
84733020
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906002245 | ||
| Barkodas | 4710713234208 | ||
| Gamintojo kodas | GPE-700S | ||
| Gamintojas | CHIEFTEC | ||
| Garantija (mėn.) | 24 | ||
| Papildoma informacija | The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the | ||
*Nuotraukos ir video nuorodos pateikiamos tik iliustraciniais tikslais. Pateikta informacija ir komplektacija gali skirtis priklausomai nuo regiono ar šalies. Prekės pavadinimas pateiktas tiekėjų kaip ir prekių spalva, parametrai, matmenys ir/arba kitos savybės gali atrodyti kitaip ir skirtis nuo originalios prekės, todėl prašome vadovautis prekių savybėmis pagal pateiktą gamintojo barkodą/gaminio kodą. Prekių kiekis ribotas.
