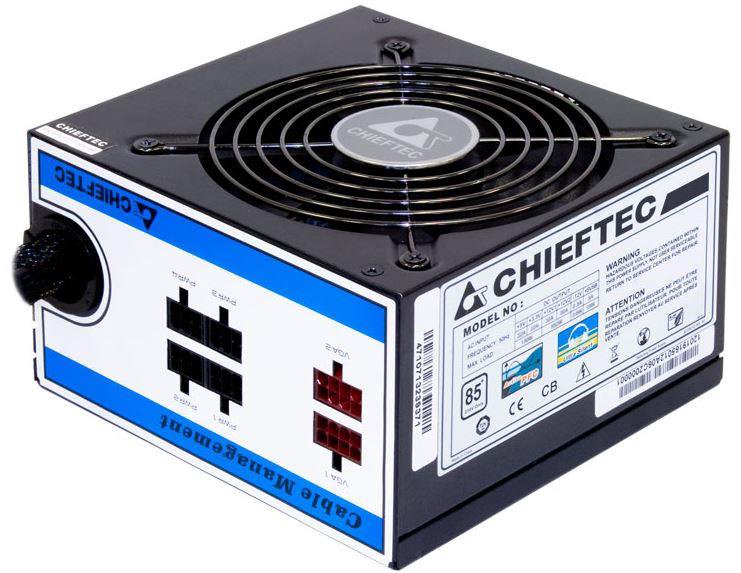

Maitinimo šaltinis CHIEFTEC CTG-650C
Išparduota
Įveskite el. pašto adresą, telefono nr. ir gaukite priminimą, kai prekė atsiras prekyboje.
Į norų sąrašą
Panašios prekės
Atsiimkite jau po 30 min.Item 1 of 3
Prekės aprašymas
This popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Chieftec CTG-650C maitinimo blokas 650 W 24-pin ATX ATX Juoda
Slide 1 of 2
Brand:
Chieftec
Produkto pavadinimas:
CTG-650C
Prekės kodas:
CTG-650C
EAN/UPC kodas:
4710713239371
- 650 W 230 V 50 Hz
- Motininės plokštės maitinimo jungtis: 24-pin ATX
- PC ATX 80 PLUS
- Aktyvus 12 cm
- Juoda
Specifikacijos
Energijos valdymas
Bendroji galia
The total power that is needed by the device
650 W
AC įėjimo įtampa
The voltage of the AC electricity that is inputted into the product.
230 V
AC įėjimo dažnis
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50 Hz
Įvesties srovė
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
6 A
Didžiausia įėjimo srovė (esant 110 V)
The maximum electrical current the device draws from the power source when operated at a voltage of 110V, measured in amperes.
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Galios koeficientas
The ratio of the real power consumed by the device to the apparent power supplied to it, expressed as a value between 0 and 1.
0,9
Galios koeficiento pataisos (PFC) tipas
Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.
Aktyvus
Kompleksinė galia (+3,3 V)
The total power output available on the +3.3V rail, measured in W.
130 W
Kompleksinė galia (+12 V)
The total maximum power output available across all +12V rails, measured in W.
552 W
Kompleksinė galia (+5V)
The total maximum power output available on the +5V rail, measured in W.
130 W
Kompleksinė galia (–12 V)
The maximum total power that can be delivered on the -12V rail, measured in W.
3,6 W
Kompleksinė galia (+5 VSB)
The total maximum power output available across the combined +5V and +5Vsb rails, measured in W.
15 W
Didžiausia išėjimo įtampa (+3,3 V)
The maximum electrical current that can be delivered on the +3.3V rail, measured in A.
22 A
Didžiausia išėjimo įtampa (+12 V1)
The maximum electrical current that can be delivered on the +12V1 rail, measured in A.
300 A
Didžiausia išėjimo įtampa (+12 V2)
The maximum electrical current that can be delivered on the +12V2 rail, measured in A.
30 A
Didžiausia išėjimo įtampa (+5 V)
The maximum electrical current that can be delivered on the +5V rail, measured in A.
22 A
Didžiausia išėjimo įtampa (–12 V)
The maximum electrical current that can be delivered on the -12V rail, measured in A.
0,3 A
Didžiausia išėjimo įtampa (+12 VSB)
The maximum electrical current that can be delivered on the +5Vsb standby rail, measured in A.
3 A
Efektyvumas
The percentage of input energy that is converted into useful work or output, rather than being lost as heat or waste (e.g. 92%).
85%
Maitinimo apsaugos ypatybės
Features that protect the device against power problems e.g. overload.
Viršijus nuolatinę srovę, Apsauga nuo per didelės įtampos, Apsauga nuo perkaitimo, Apsauga nuo perkrovos, Trumpasis jungimas, Nepasiekus nuolatinės srovės, Minimaliosios įtampos apsauga
Ryšys
Motininės plokštės maitinimo jungtis
The way in which the motherboard is connected to the power supply.
24-pin ATX
SATA elektros jungčių skaičius
The total number of available power interfaces designed to provide electricity to SATA-compatible drives or peripherals.
6
Periferinė (Molex) galios jungtis (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
4
EPS maitinimo jungtis (8-kaisčiai)
Indicates whether the product features an 8-pin EPS connector to provide dedicated power to the CPU.
Ryšys
PCI „Express“ maitinimo jungtys (6 + 2 kontaktai)
The number of 6+2 pin power connectors available to provide dedicated power to high-performance expansion cards.
2
CPU P4 jungtis (4 kontaktai)
The number of 4-pin power connectors available to provide dedicated power to the processor.
1
Floppy įrenginio maitinimo jungtis
The number of 4-pin power connectors available to provide electricity to compatible legacy devices.
2
CPU maitinimo jungtys (8 kontaktai)
The number of 8-pin power connectors available to provide dedicated power.
1
Perdavimo laidu tipas
Specifies the design of the internal wiring, indicating whether cables are permanently attached or can be removed (e.g. Fully-Modular).
Pusiau modulinis
Veikimo charakteristikos
Sertifikatas 80 PLUS
The energy efficiency rating, indicating the minimum percentage of power converted from the mains to the device (e.g., 80 PLUS Gold).
80 PLUS
Paskirtis
What the product is used for.
PC
Maitinimo bloko (PSU) formos koeficientas
The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).
ATX
ATX versija
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions
2.3
Vidutinis laikas tarp trikčių (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
100000 h
Konstrukcija
Produkto spalva
The colour e.g. red
Juoda
Aušinimo tipas
The method used to cool the device or to cool the air around the device.
Aktyvus
Ventiliatoriaus skersmuo
The size of the fan
12 cm
Ventiliatorių skaičius
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 ventiliatorius(iai / ių)
Ventiliatoriaus vieta
Specifies the physical position of the cooling fan on the unit (e.g. Front, Rear, Side).
Viršus
Sertifikatai
Atitikties sertifikatai
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Sertifikavimas
Specifies the official standards, safety approvals, or regulatory certifications the product has received.
CE, CB, FCC
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
150 mm
Ilgis
The distance from the front to the back of something.
140 mm
Aukštis
The measurement of the product from head to foot or from base to top.
87 mm
Pakuotės duomenys
Pakuotės tipas
The type of product package e.g. box.
„Box“
Logistikos duomenys
Darniosios sistemos (DS) kodas
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
84733020
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906002251 | ||
| Barkodas | 4710713239371 | ||
| Gamintojo kodas | CTG-650C | ||
| Gamintojas | CHIEFTEC | ||
| Garantija (mėn.) | 24 | ||
| Papildoma informacija | This popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency. | ||
