Prekės aprašymas
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija

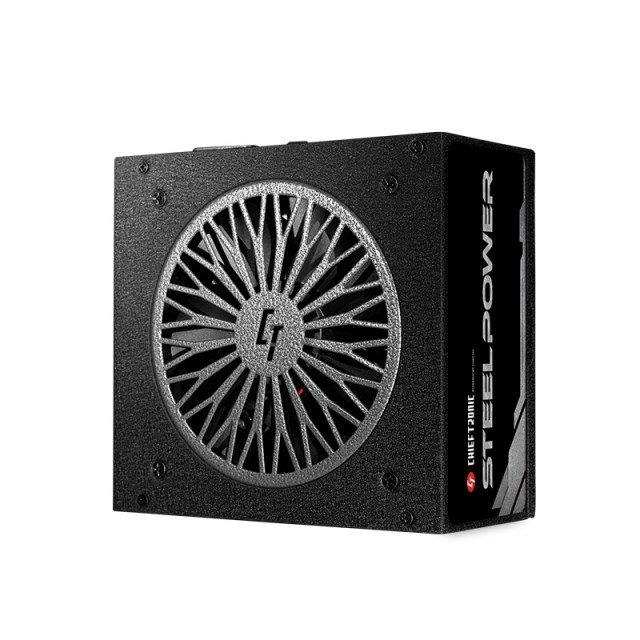

Chieftec BDK-550FC maitinimo blokas 550 W 20+4 pin ATX ATX Juoda
Slide 1 of 9
Brand:
Chieftec
Produkto pavadinimas:
BDK-550FC
Prekės kodas:
BDK-550FC
EAN/UPC kodas:
0753263077417
753263077417
- 550 W 100 - 240 V 47 - 63 Hz
- Motininės plokštės maitinimo jungtis: 20+4 pin ATX
- Kompiuteris / serveris ATX 80 PLUS Bronze
- Aktyvus 12 cm
- Juoda
Specifikacijos
Energijos valdymas
Bendroji galia
The total power that is needed by the device
550 W
AC įėjimo įtampa
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC įėjimo dažnis
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
47 - 63 Hz
Įvesties srovė
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
8 A
Galios koeficientas
The ratio of the real power consumed by the device to the apparent power supplied to it, expressed as a value between 0 and 1.
0,9
Galios koeficiento pataisos (PFC) tipas
Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.
Aktyvus
Kompleksinė galia (+3,3 V)
The total power output available on the +3.3V rail, measured in W.
100 W
Kompleksinė galia (+12 V)
The total maximum power output available across all +12V rails, measured in W.
546 W
Kompleksinė galia (+5V)
The total maximum power output available on the +5V rail, measured in W.
100 W
Kompleksinė galia (–12 V)
The maximum total power that can be delivered on the -12V rail, measured in W.
3,6 W
Kompleksinė galia (+5 VSB)
The total maximum power output available across the combined +5V and +5Vsb rails, measured in W.
12,5 W
Didžiausia išėjimo įtampa (+3,3 V)
The maximum electrical current that can be delivered on the +3.3V rail, measured in A.
20 A
Didžiausia išėjimo įtampa (+12 V)
The maximum electrical current that the device can provide on the +12V rail, measured in A.
45,5 A
Didžiausia išėjimo įtampa (+5 V)
The maximum electrical current that can be delivered on the +5V rail, measured in A.
20 A
Didžiausia išėjimo įtampa (–12 V)
The maximum electrical current that can be delivered on the -12V rail, measured in A.
0,3 A
Didžiausia išėjimo įtampa (+12 VSB)
The maximum electrical current that can be delivered on the +5Vsb standby rail, measured in A.
2,5 A
Maitinimo apsaugos ypatybės
Features that protect the device against power problems e.g. overload.
Viršijus nuolatinę srovę, Apsauga nuo per didelės įtampos, Apsauga nuo perkaitimo, Apsauga nuo perkrovos, Trumpasis jungimas, Minimaliosios įtampos apsauga
Ryšys
Motininės plokštės maitinimo jungtis
The way in which the motherboard is connected to the power supply.
20+4 pin ATX
Motininės plokštės maitinimo kabelio ilgis
The total length of the cable used to provide power to the motherboard, measured in mm.
65 cm
SATA elektros jungčių skaičius
The total number of available power interfaces designed to provide electricity to SATA-compatible drives or peripherals.
6
SATA maitinimo kabelio ilgis
The total length of the SATA power cable, measured in mm (e.g., 550).
150, 500 mm
Periferinė (Molex) galios jungtis (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
3
Periferinio („Molex“) maitinimo kabelio ilgis
The total length of the peripheral power cable using a Molex connector, measured in mm (e.g., 450).
150, 500 mm
EPS maitinimo jungtis (4 + 4 kontaktai)
Indicates whether the product includes a 4+4 pin power connector.
Ryšys
PCI „Express“ maitinimo jungtys (6 + 2 kontaktai)
The number of 6+2 pin power connectors available to provide dedicated power to high-performance expansion cards.
2
Floppy įrenginio maitinimo jungtis
The number of 4-pin power connectors available to provide electricity to compatible legacy devices.
1
Perdavimo laidu tipas
Specifies the design of the internal wiring, indicating whether cables are permanently attached or can be removed (e.g. Fully-Modular).
Visiškai modulinis
Veikimo charakteristikos
Sertifikatas 80 PLUS
The energy efficiency rating, indicating the minimum percentage of power converted from the mains to the device (e.g., 80 PLUS Gold).
80 PLUS Bronze
Paskirtis
What the product is used for.
Kompiuteris / serveris
Maitinimo bloko (PSU) formos koeficientas
The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).
ATX
ATX versija
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions
2.3
Aušinimo padengimo tipas
The type of mechanism used to reduce friction between moving parts, such as a ball bearing or fluid dynamic bearing (FDB).
FDB
Konstrukcija
Produkto spalva
The colour e.g. red
Juoda
Aušinimo tipas
The method used to cool the device or to cool the air around the device.
Aktyvus
Ventiliatoriaus skersmuo
The size of the fan
12 cm
Ventiliatorių skaičius
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 ventiliatorius(iai / ių)
Sertifikatai
Atitikties sertifikatai
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Sertifikavimas
Specifies the official standards, safety approvals, or regulatory certifications the product has received.
EAC
FCC
CB
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
150 mm
Ilgis
The distance from the front to the back of something.
140 mm
Aukštis
The measurement of the product from head to foot or from base to top.
86 mm
Svoris
Weight of the product without packaging (net weight). If possible
1,62 kg
Pakuotės duomenys
Paketo svoris
Weight of the packaged product.
2,17 kg
Techninė informacija
Tvarumo reikalavimų laikymasis
Indicates whether the product complies with established environmental and sustainability standards.
Tvarumo sertifikatai
The environmental or ethical certifications the product has received to verify its sustainability standards (e.g., ASC or ACT Organic).
ErP
Logistikos duomenys
Darniosios sistemos (DS) kodas
The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.
84733020
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906041525 | ||
| Barkodas | 7532630774172 | ||
| Gamintojo kodas | BDK-550FC | ||
| Gamintojas | CHIEFTEC | ||
| Garantija (mėn.) | 0 | ||
