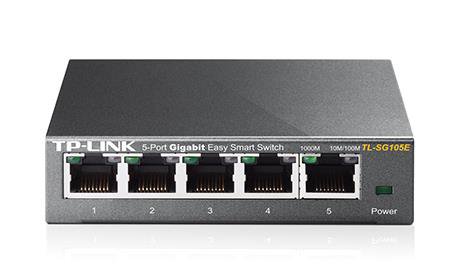

Komutatorius TP-LINK Switch TL-SG105E Web managed Wall mountable Gigabit Ethernet (copper)

Išparduota

+370
Komutatorius TP-LINK Switch TL-SG105E Web managed Wall mountable Gigabit Ethernet (copper)
6935364022037
999906000497
TP-LINK
22.99 €
EUR

Prekės aprašymas


*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.

Bendra informacija

TP-Link TL-SG105E Valdomas L2 Gigabit Ethernet (10/100/1000) Juoda
Brand: TP-Link
Produkto pavadinimas: TL-SG105E
Prekės kodas: TL-SG105E V5
EAN/UPC kodas: 6935364022044
0845973022037, 845973022037, 6935364022037
  • Valdomas L2 Web pagrįstas valdymas
  • Paslaugos kokybės (QoS) palaikymas
  • Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius: 5
  • Cat3, Cat4, Cat5, Cat5e, Cat6 1000BASE-T, 100BASE-TX, 10BASE-T
  • Adreso lentelės dydis: 2000 įrašai Perjungimo pajėgumas: 10 Gbit/s
  • DC Pridėtas maitinimo šaltinis

Specifikacijos

Valdymo funkcijos
Perjungimo tipas
What switch device has
Valdomas
Perjungimo sluoksnis
A network switch is a computer networking device that links networking segments. A switch has different layers
L2
Paslaugos kokybės (QoS) palaikymas
Web pagrįstas valdymas
Using a website/web application to manage something.
Ryšys
Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius
The number of basic switching RJ-45 Ethernet ports (sockets).
5
Pagrindinių perjungimo RJ-45 eterneto prievadų tipas
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (varinis) portų kiekis
5
Tinklas
Tinklo standartai
The way in which the network is working
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G parama
The product can use Oracle 10G
Varinių eterneto kabelių technologija
1000BASE-T, 100BASE-TX, 10BASE-T
Palaikomi laido tipai
Cat3, Cat4, Cat5, Cat5e, Cat6
Portų mirroring
Nuorodų agregacija
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover
Automatinis suderinimas (Auto-negotiation)
VLAN palaikymas
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings
Virtualaus vietinio tinklo ypatybės
Port-based VLAN
VLANs skaičius
32
Duomenų perdavimas
Perjungimo pajėgumas
The data transfer capacity of the switch per second.
10 Gbit/s
Persiuntimo dažnis
7,44 Mpps
Adreso lentelės dydis
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
2000 įrašai
„Store-and-forward“ funkcija
Jumbo Frames palaikymas
„Jumbo“ kadrai
16000
Paketo buferio atmintis
1 MB
Saugumas
IGMP tinklinio judėjimo sekimas
Konstrukcija
Produkto spalva
The colour e.g. red
Juoda
LED indikatoriai
Veikimo charakteristikos
Suderinamos operacinės sistemos
List of desktop operating systems tested as compatible with this product.
Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
Energijos valdymas
Maitinimo šaltinis
What is providing power for the product e.g. mains electricity.
DC
Pridėtas maitinimo šaltinis
There is a power supply with this product.
Įvesties srovė
0.6 A
Įėjimo įtampa
The voltage (V) which is required to power the product.
5 V
Galios suvartojimas (maks.)
The maximum amount of power used by the device.
2,82 W
„Power over Ethernet“ (PoE)
Maitinimas per Eternetą (PoE)
The device supports Power over Ethernet (PoE)
Aplinkos sąlygos
Darbo temperatūros diapazonas (TT)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Sandėliavimo temperatūros norma (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Darbo santykinės drėgmės diapazonas
10 - 90%
Sandėliavimo santykinis drėgmės diapazonas
5 - 90%
Šilumos sklaida
The heat generated by the power supply.
9,07 BTU/h
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
100 mm
Ilgis
The distance from the front to the back of something.
98 mm
Aukštis
The measurement of the product from head to foot or from base to top.
25 mm
Pakuotės turinys
Pridėti kabeliai
AC
Greitos pradžios vadovas
Instructions
Naudojimo žinynas
Stovo montavimo rinkinys
Pakuotės duomenys
Pakuotės tipas
The type of product package e.g. box.
„Box“
Pakuotės plotis
The distance from one side of the packaging to the other.
125 mm
Pakuotės gylis
The distance from the front to the back of the packaging.
128 mm
Pakuotės aukštis
The distance from the top to the bottom of the packaging.
92 mm
Paketo svoris
Weight of the packaged product.
450 g
Sertifikatai
Sertifikavimas
FCC, CE, RoHS

Specifikacija

Bendrosios charakteristikos:
Prekės kodas999906000497Paketo buferio atmintis (MB)1
Barkodas6935364022037Palaikomi laido tipaiCat3, Cat4, Cat5, Cat5e, Cat6
Gamintojo kodasTL-SG105E„Store-and-forward“ funkcijaYraYra
GamintojasTP-LINKAutomatinis suderinimas (Auto-negotiation)YraYra
Garantija (mėn.)24
