ASUS ProArt PA169CDV Pen Display 15.6in

Name: ASUS ProArt PA169CDV Pen Display 15.6in
Brand: ASUS
SKU: 999901027209
Availability: InStock

Tik internetu

Prekės informacija

Kaina

1 255,00 €

Šią prekę rasite tik internete.

Paskubėkite! Liko mažiau nei 5 vnt.

Į norų sąrašą

Pristatymas ir atsiėmimasRinkitės pristatymą į namus per 2-4 d.d.

Apsaugokite savo įrenginįApdrauskite savo įrenginį ar apsisaugokite nuo papildomų išlaidų nuo 115,00 €.

Prekės aprašymas

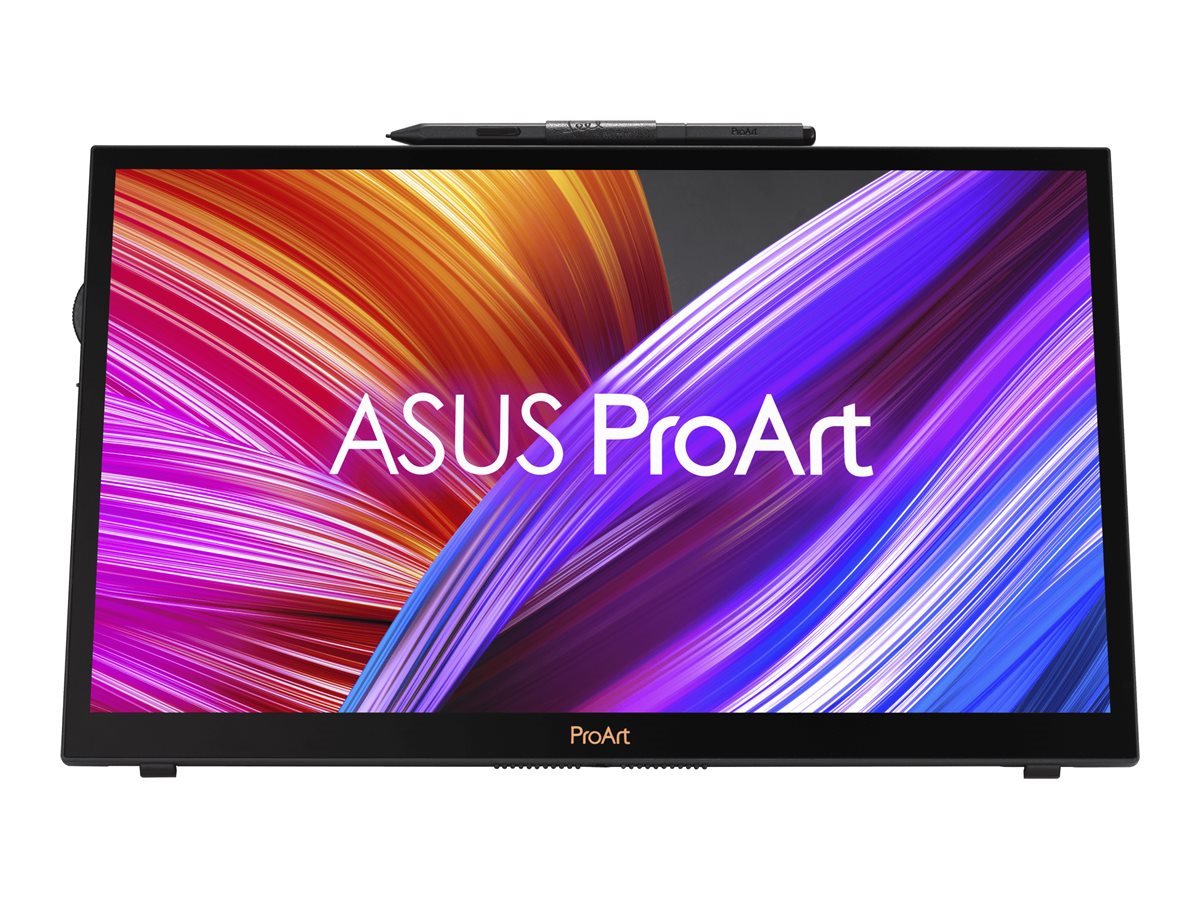

ProArt PA169CDV Pen Display

Your Canvas for Digital Art

ASUS ProArt PA169CDV Pen Display features a 15.6-inch, 10-bit, 4K UHD, IPS panel. It’s bundled with the ProArt Pen featuring Wacom EMR technology for great drawing experiences. PA169CDV is the world’s first portable monitor that’s both PANTONE® Validated and Calman Verified to ensure exceptional color accuracy. The ergonomic PA169CDV includes innovative upper and lower kickstands that allow for different tilt angles, making it easy to switch between daily productivity and creative workflows.

Built for Creators

Ready for that Creative Spark

With ProArt Display PA169CDV, you’re ready whenever inspiration strikes comes. Built-in Wacom EMR technology and a bundled ProArt Pen enable a natural and precise drawing feel when creating content or editing artwork.

Streamline Your Workflow

The 4K UHD panel is both PANTONE Validated and Calman Verified to ensure sharper, detailed and more vivid colors, making it the perfect choice for a second display – or even a main screen. Either way, the perfection needed for both creation and color validation is assured.

Impeccably-detailed Visuals

With a 4K UHD (3840 x 2160) panel, you’ll enjoy 4X pixel density and up to 300% more on-screen working space than similarly-sized Full HD (FHD) displays. Up to 400 nits of brightness and VESA DisplayHDR 400 certification delivers brighter, more lifelike viewing experiences, so every image is sharp, detailed and a pleasure to view.

4096

Pressure levels

40°

Tilt

Enjoy True-to-life Color

Photorealistic Color

ProArt Display PA169CDV delivers exceptionally-detailed and realistic visuals, with 10-bit color depth, 100% sRGB, 100% Rec.709, and cinema-grade DCI-P3 color-gamut support. This means that the colors reproduced on the display are richer and more vivid: it’s ideal for color-intensive projects, but also enhances any kind of content.

100% sRGB
100% Rec.709

Experience Full Color

Revel in pure, expressive hues — thanks to accurate, true-to-life color reproduction. Delta E < 2 color accuracy means your images are accurately reproduced on screen, so you can see exactly how they’ll turn out.

∆E < 2 Color Accuracy

Pre-Calibrated for Out-of-the-Box Accuracy

Color professionals rely on color-accurate displays to ensure that their creations render as intended. To ensure precise color accuracy, each PA169CDV is pre-calibrated at the factory. This remarkable display is both PANTONE® Validated and Calman Verified, and has a Delta-E color-accuracy value of less than 2. It also undergoes meticulous testing to ensure smooth color gradation and to guarantee the very best visuals.

Creativity with a Spin

Discover new ways to work with the exclusive ASUS Dial, an intuitive physical controller that provides instant and precise fingertip control over parameters in creative apps. A switch by the dial allows you to select either stepped or stepless mode for intuitive control. Customized shortcuts enable you to zoom in and out of images or adjust brush size by simply turning the ASUS Dial. You can even tailor the default interface to suit your own work style.

*ProArt Creator Hub for Microsoft Windows only.

Intuitive Control at Your Fingertips

ASUS Control Panel is an exciting virtual interface designed to give you intuitive, precise control over creative apps such as Adobe software, DaVinci Resolve, Clip Studio Paint, and more. With the fully-customizable dial, slider, button, and scroll touch controls displayed on a secondary touchscreen, you can easily assign controls to change brush size or saturation, there’s even a new Color Management function to optimize color tools. ASUS has collaborated with PANTONE to provide digital color data that helps you express your creativity.

*ProArt Creator Hub for Microsoft Windows only.
**10-point touch function will depend on the operating system.

Rich Connectivity

PA169CDV offers a host of ports to cater to your creative needs, including a single-cable USB-C solution that supports DisplayPort™ Alt Mode and power input simultaneously. Plus, there’s another USB-C port solely for the power adaptor. There’s additional flexibility in the shape of an HDMI port, making it easy to connect PA169CDV to a wide variety of input sources.

*Connected device requires USB Type-C connectivity. (DisplayPort Alt Mode and at least 15 W power output required).
*Monitor brightness will decrease when using the single-cable solution.

Built-in Adjustable Kickstands

ProArt Display PA169CDV features two built-in ergonomic kickstands. The lower kickstand provides the ideal viewing angle for everyday productivity, while engaging the upper prop tilts the display at a shallow 17° angle for comfortable creativity.

Sustaining an Incredible Future

Environmental Certification

ProArt Display PA169CDV is stringently tested to meet the requirements of world-leading sustainability certifications. These tests include a comprehensive database of up-to-date criteria, independent verification, and a structured system for continuous improvement.

Eco-friendly Packaging

ProArt Display PA169CDV packaging are made of recyclable cardboard. ASUS has designed the packaging to minimize weight and volume, which helps conserve natural resources and allows more devices to be transported in a single shipping container.

Display
Panel Size (inch) : 15.6, Pixels Per Inch (PPI) : 282, Aspect Ratio : 16:9, Display Viewing Area (H x V) : 345.60 ×194.40 mm, Display Surface : AGAF (Anti-Glare, Anti-FingerPrint), Backlight Type : LED, Panel Type : IPS, Viewing Angle (CR≧10, H/V) : 178°/ 178°, Pixel Pitch : 0.09mm, Resolution : 3840x2160, Color Space (sRGB) : 100%, Brightness (HDR, Peak) : 500 cd/㎡, Brightness (Typ.) : 450cd/㎡, Contrast Ratio (HDR, Max) : 15,000:1, Contrast Ratio (Typ.) : 1200:1, Display Colors : 1073.7M (10 bit), Response Time : 10ms(GTG), Refresh Rate (Max) : 60Hz, HDR (High Dynamic Range) Support : HDR10Touch : Yes, Projective Capacitive 10-point Touch, Stylus Support : Yes, Wacom EMR Technology ProArt Pen (Feel by Wacom), Protection Glass : Yes, Flicker-free : Yes, LCD ZBD Warranty : Yes(3 yr)
Video Feature
ProArt Preset : StandardProArt Preset : sRGBProArt Preset : Adobe RGBProArt Preset : DCI-P3ProArt Preset : Rec. 709ProArt Preset : SceneryProArt Preset : ReadingProArt Preset : HDRProArt Preset : User mode1ProArt Preset : User mode2Color Temp. Selection : Yes(5 modes), Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y), Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 ), Color Accuracy : △E< 2, ProArt Palette : Yes, QuickFit Plus : Yes, PIP / PBP Technology : Yes, HDCP : Yes, 2.2, Low Blue Light : Yes
Audio Feature
Speaker : Yes(1Wx2)
I/O Ports
USB-C x 1 (DP Alt Mode), HDMI(v2.0) x 1, USB-C Power Delivery : 15W
Signal Frequency
Digital Signal Frequency : HDMI: 29~160 KHz (H) / 40~60Hz (V) USB-C: 29~160 KHz (H) / 40~60Hz (V)
Power Consumption
Power Consumption : <15W, Power Saving Mode : <0.5W, Power Off Mode : <0.3W, Voltage : 100-240V, 50/60Hz
Mechanical Design
Tilt : Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°), Pivot : Yes (0° ~ 90° Clockwise), 1/4" Tripod Socket : Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 37.0 x 23.7 x 1.2 cm (14.57" x 9.33" x 0.47"), Box Dimension (W x H x D) : 53.90 x 10.75 x 32.30 cm (21.22" x 4.23" x 12.72")
Weight (Esti.)
Net Weight : 1.07 kg (2.36 lbs), Gross Weight : 2.95 kg (6.50 lbs)
Accessories (vary by regions)
Color pre-calibration reportHDMI cablePower adapterProArt Pen (Wacom EMR)ProArt Carry BagQuick start guideUSB-C cableWarranty CardWelcome Card
Certificate
Energy StarTÜV Flicker-freeTÜV Low Blue LightVESA DisplayHDR 400Calman VerifiedPantone Validated

This content uses cookies to improve your experience. By continuing, you agree to this use. Learn More at https://www.flixmedia.com/privacy-notice

*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.

Bendra informacija

ASUS ProArt PA169CDV kompiuterio monitorius 39,6 cm (15.6") 3840 x 2160 pikseliai 4K Ultra HD LCD Lietimui jautrus ekranas Juoda

Slide 1 of 9

Brand: ASUS

Produkto šeima: ProArt

Produkto pavadinimas: PA169CDV

Prekės kodas: 90LM0711-B01I70

EAN/UPC kodas: 4711081710554

Lietimui jautrus ekranas 39,6 cm (15.6") LCD IPS
4K Ultra HD 3840 x 2160 pikseliai 16:9
60 Hz 10 ms 450 cd/m² 1200:1
Apsaugos nuo mirgėjimo technologija
E 12 kWh 15 W

ES energijos etiketė (pdf)

Brochure ASUS 90LM0711-B01I70 (pdf)

Specifikacijos

Ekranas

Ekrano įstrižainė

39,6 cm (15.6")

Ekrano rezoliucija

3840 x 2160 pikseliai

HD tipas

4K Ultra HD

Natūralus kraštinių santykis

16:9

Ekrano technologija

LCD

Skydo tipas

IPS

Foninio apšvietimo tipas

LED

Lietimui jautrus ekranas

Liečiamo ekrano technologija

Prognozuojama talpinė sistema

Lietimui jautri technologija

„Multi-touch“

Vienalaikių kontaktinių taškų skaičius

Ekrano ryškumas (pikinis)

500 cd/m²

Ekrano ryškumas (tipinis)

450 cd/m²

Reakcijos laikas

10 ms

Neblizgantis ekranas

Ekrano forma

Plokščias

Kontrasto santykis (tipinis)

1200:1

Kontrasto santykis (dinaminis)

15000:1

Maksimalus atnaujinimo dažnis

60 Hz

Matymo kampas, horizontalus

178°

Matymo kampas, vertikalus

178°

Ekrano spalvų skaičius

1,073 milijardo spalvų

Pikselių žingsnis

0,09 x 0,09 mm

Pikselių tankumas

282 ppi

Matomas dydis, horizontalus

34,6 cm

Matomas dydis, vertikalus

19,4 cm

Horizontalus skaitmeninis dažnis

29 - 160 kHz

Vertikalus skaitmeninis dažnis

40 - 60 Hz

Palaikoma HDR

Didelio dinaminio diapazono (HDR) technologija

High Dynamic Range 10 (HDR10)

Spalvų gylis

10 bitai

Palaikomas sRGB (įprastas)

100%

Veikimo charakteristikos

NVIDIA G-SYNC

„AMD FreeSync“

Apsaugos nuo mirgėjimo technologija

Mažo kiekio mėlynos šviesos technologija

Multimedija

Garsiakalbių skaičius

RMS galingumas

2 W

Įmontuoti garsiakalbiai

Integruota kamera

Konstrukcija

Produkto spalva

Juoda

Ryšys

Įmontuotas USB jungčių daugiklis

C tipo USB kylančiųjų prievadų skaičius

„USB Type C DisplayPort Alternate Mode“

„USB Power Delivery“

USB maitinimo tiekimas iki

15 W

HDMI

HDMI portų kiekis

HDMI versija

2.0

Ausinių išvestis

DC įėjimo lizdas

Ergonomija

VESA tvirtinimo pagrindas

Kabelio spynos lizdas

Aukščio reguliavimas

Sukimasis

Pasukimo kampas

0 - 90°

Pokrypio reguliavimas

Posvyrio kampo intervalas

54 - 75°

Energijos valdymas

Energijos vartojimo efektyvumo klasė (SDR)

Energijos vartojimo efektyvumo klasė (HDR)

Energijos sąnaudos (SDR) per 1000 valandų

12 kWh

Energijos sąnaudos (HDR) per 1000 valandų

16 kWh

Energijos suvartojimas

15 W

Energijos suvartojimas (off)

0,3 W

Energijos suvartojimas (PowerSave)

0,5 W

AC įėjimo įtampa

100 - 240 V

AC įėjimo dažnis

50/60 Hz

Energijos efektyvumo skalė

Nuo A iki G

Svoris ir matmenys

Plotis (be stovo)

370 mm

Gylis (be stovo)

12 mm

Aukštis (be stovo)

237 mm

Svoris (be stovo)

1,07 kg

Pakuotės duomenys

Pakuotės plotis

539 mm

Pakuotės gylis

323 mm

Pakuotės aukštis

107,5 mm

Paketo svoris

2,95 kg

Pakuotės tipas

„Box“

Kitos savybės

Sertifikavimas

Energy Star TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 400 Calman Verified Pantone Validated

Specifikacija

Bendrosios charakteristikos:
Prekės kodas	999901027209
Barkodas	4711081710554
Gamintojo kodas	90LM0711-B01I70
Gamintojas	ASUS
Garantija (mėn.)	0

*Nuotraukos ir video nuorodos pateikiamos tik iliustraciniais tikslais. Pateikta informacija ir komplektacija gali skirtis priklausomai nuo regiono ar šalies. Prekės pavadinimas pateiktas tiekėjų kaip ir prekių spalva, parametrai, matmenys ir/arba kitos savybės gali atrodyti kitaip ir skirtis nuo originalios prekės, todėl prašome vadovautis prekių savybėmis pagal pateiktą gamintojo barkodą/gaminio kodą. Prekių kiekis ribotas.
