Vidinis kietasis diskas SSD SAMSUNG MZ-V7P1T0BW
Išparduota
Įveskite el. pašto adresą, telefono nr. ir gaukite priminimą, kai prekė atsiras prekyboje.
Į norų sąrašą
Prekės aprašymas
Fearless Performance
Exceptional Endurance
The SSD that goes beyond

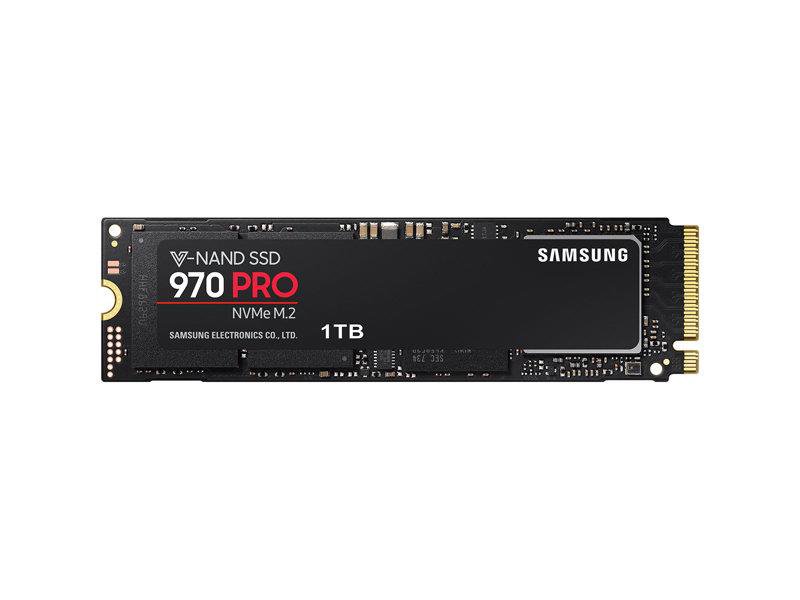

Experience the best. For intensive workloads on PCs and workstations, the 970 PRO gives utmost performance enabled by Samsung†s NVMe™ SSD leadership. The latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor surpass the demands of tech enthusiasts and professionals.
* The NVM Express® design mark is a registered trademark of NVM Express, Inc.
Fearless Performance
Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3x4 NVMe interface with the latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds of up to 3,500/2,700 MB/s*, approximately 30 percent faster than the previous generation.
* Sequential and random performance measurements are based on IOmeter 1.1.0. Performance may vary based on the SSD†s firmware version, system hardware and configuration.* Test system configuration: Intel® Core i7-7700K [email protected], DDR4 2400MHz 32GB, OS-Window 10 Built 10240, Chipset-ASUS PRIME Z270-A
Exceptional Endurance
Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW* with a 5-year limited warranty, achieving 50 percent greater endurance than the previous generation, all powered by the latest V-NAND technology.
* TBW: Terabytes Written* Warrantied TBW for 970 PRO: 600 TBW for 512GB model, 1,200 TBW for 1TB model.* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 PRO enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
Photo Gallery
Client PCs
Application
PCIe Gen 3.0 x4, NVMe 1.3
Interface
80.15 x 22.15 x 2.38 (mm)
Dimension (WxHxD)
Max 8.0 g Weight
Weight
SHOW MORE SPECS
- ApplicationClient PCs
- InterfacePCIe Gen 3.0 x4, NVMe 1.3
- Dimension (WxHxD)80.15 x 22.15 x 2.38 (mm)
- WeightMax 8.0 g Weight
- PerformanceUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
- Sequential WriteUp to 2,700 MB/s * Performance may vary based on system hardware & configuration
General Feature
- Capacity1,024GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Form FactorM.2 (2280)
- Storage MemorySamsung V-NAND 2-bit MLC
- ControllerSamsung Phoenix Controller
- Cache MemorySamsung 1GB Low Power DDR4 SDRAM
Special Feature
- TRIM SupportSupported
- S.M.A.R.T SupportSupported
- GC (Garbage Collection)Auto Garbage Collection Algorithm
- Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
- WWN SupportNot supported
- Device Sleep Mode SupportYes
Performance
- Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
- Random Read (4 KB, QD32)Up to 500,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD32)Up to 500,000 IOPS * Performance may vary based on system hardware & configuration
- Random Read (4 KB, QD1)Up to 15,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4 KB, QD1)Up to 55,000 IOPS * Performance may vary based on system hardware & configuration
Environment
- Average Power Consumption (system level)* Average: 5.7 W * Maximum: 8.5 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
- Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage3.3 V ± 5 % Allowable voltage
- Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
- Operating Temperature0 - 70 ℃ Operating Temperature
- Shock1,500 G & 0.5 ms (Half sine)
Accessories
- Installation KitNot Available
Software
- Management SWMagician Software for SSD management
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Samsung 970 PRO 1 TB M.2 PCI Express 3.0 NVMe V-NAND MLC
Slide 1 of 7
Brand:
Samsung
Produkto pavadinimas:
970 PRO
Prekės kodas:
MZ-V7P1T0BW
EAN/UPC kodas:
8801643205379
0887276261928, 887276261928
- 1 TB M.2 PCI Express 3.0
- Skaitymo laikas: 3500 MB/s
- Rašymo laikas: 2700 MB/s
- V-NAND MLC NVMe 1.3
- 256-bit AES
- S.M.A.R.T. palaikymas TRIM palaikymas
- Taikoma: PC
Specifikacijos
Savybės
„NVMe“ versija
1.3
NAND atminties kortelės tipas
MLC (Multi Level Cell)
Apsaugos algoritmų palaikymas
Security algorithms are used to provide authentication
256-bit AES
SSD disko talpa
The Solid State Drive's data storage capacity.
1 TB
SSD formos koeficientas
The size of the solid-state drive, given in inches
M.2
Sąsaja
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA
PCI Express 3.0
NVMe
NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Atminties tipas
Type of memory in the device e.g. DDR3
V-NAND MLC
Taikoma
What this product is used as a part of (component for).
PC
Skaitymo laikas
The speed at which a device can read data.
3500 MB/s
Rašymo laikas
The speed at which a device can write data.
2700 MB/s
Kontrolės tipas
Samsung Phoenix
PCI „Express“ sąsajos duomenų keliai
x4
S.M.A.R.T. palaikymas
TRIM palaikymas
Vidutinis laikas tarp trikčių (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
1500000 h
„Opal SSC 2.0“
„TCG Opal 2.0“
Energijos valdymas
Darbinė įtampa
Defines the range of operating voltages available
3,3 V
Energijos suvartojimas (skaitymas)
5,2 W
Energijos valdymas
Energijos suvartojimas (rašymas)
5,7 W
Energijos suvartojimas DevSlp (prietaiso miegas)
5 mW
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
80,2 mm
Ilgis
The distance from the front to the back of something.
22,1 mm
Aukštis
The measurement of the product from head to foot or from base to top.
2,38 mm
Svoris
Weight of the product without packaging (net weight). If possible
8 g
Aplinkos sąlygos
Darbo temperatūros diapazonas (TT)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Sandėliavimo temperatūros norma (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-45 - 85 °C
Darbo santykinės drėgmės diapazonas
5 - 95%
Sandėliavimo santykinis drėgmės diapazonas
5 - 95%
Ne-veiklos vibracijos
Environmental requirements for vibration in non-operating mode
20 G
Veiklos šokas
Environmental requirements for optimal protection from impact in operating mode
1500 G
Ne veiklos šokas
Environmental requirements for optimal protection from impact in non-operating mode
1500 G
Kitos savybės
Produkto spalva
The colour e.g. red
Juoda
Paleidimo data
4/16/2018
Atitikties sertifikatai
RoHS
Logistikos duomenys
Darniosios sistemos (DS) kodas
84717070
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 109999000733 | ||
| Barkodas | 8801643205379 | ||
| Gamintojo kodas | MZ-V7P1T0BW | ||
| Gamintojas | Samsung | ||
| Garantija (mėn.) | 60 | ||
