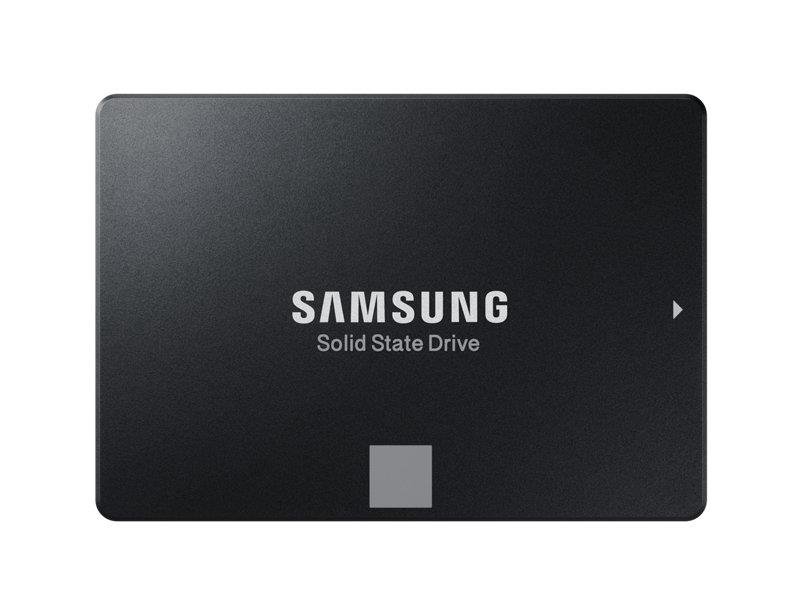

Vidinis kietasis diskas SSD SAMSUNG 860 EVO 500GB/MZ-76E500B/EU
Tik internetu
Išparduota
Įveskite el. pašto adresą, telefono nr. ir gaukite priminimą, kai prekė atsiras prekyboje.
Į norų sąrašą
Prekės aprašymas
The SSD to trust
The newest edition to the world’s best-selling* SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.
* Sources: NPD (US data from Jan. 2015 to Oct. 2017) and GfK (EU5 data from Jan. 2015 to Sep. 2017, China data from Jan. 2016 to Sep. 2017)
Enhanced performance
Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential
writes up to 520 MB/s* with Intelligent TurboWrite technology, and sequential reads up to 550 MB/s.
The TurboWrite buffer size* is upgraded from 12 GB to 78 GB for faster file transfer.
* Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential write performance measurements are based on Intelligent TurboWrite technology. Sequential performance measurements based on CrystalDiskMark v.5.0.2 and IOmeter 1.1.0. The sequential write performances after Intelligent TurboWrite region are 300 MB/s for 250/500 GB and 500 MB/s for 1 TB.
* Test system configuration: Intel Core i5-3550 CPU @ 3.3 GHz, DDR3 1333 MHz 4 GB, OS – Windows 7 Ultimate x64, Chipset: ASUS P8H77-V
* The TurboWrite buffer size varies based on the capacity of the SSD‡ 12 GB for 250 GB model, 22 GB for 500 GB model, 42 GB for 1 TB model and 78 GB for 2/4 TB. For more information on the TurboWrite, please visit www.samsungssd.com.
Boosted endurance
Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written)* than the previous 850 EVO. The latest V-NAND technology gives you up to 2,400 TBW, or is backed by a 5-year limited warranty.*
* Warrantied TBW for 860 EVO: 150 TBW for 250 GB model, 300 TBW for 500 GB model, 600 TBW for 1 TB model, 1,200 TBW for 2 TB model and 2,400 TBW for 4 TB model.
* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package
Smart compatibility
Benefit from faster, more fluid communication with your host system. The refined ECC* algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility. Our advanced engineering makes the 860 EVO more compatible with your computing system.
* Error Correction Code
Multi form factors
Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.
Client PCs
Application
2.5 inch
Form Factor
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Interface
100 X 69.85 X 6.8 (mm)
Dimension (WxHxD)
SHOW MORE SPECS
General Feature
- ApplicationClient PCs
- Form Factor2.5 inch
- InterfaceSATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
- Dimension (WxHxD)100 X 69.85 X 6.8 (mm)
- WeightMax 50.0g Weight
- NAND TypeSamsung V-NAND 3bit MLC
- ControllerSamsung MJX Controller
- Cache MemorySamsung 512 MB Low Power DDR4 SDRAM
Special Feature
- TRIM SupportTRIM Supported
- S.M.A.R.T SupportS.M.A.R.T Supported
- GC (Garbage Collection)Auto Garbage Collection Algorithm
- Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
- WWN SupportWorld Wide Name supported
- Device Sleep Mode SupportYes
Performance
- Sequential ReadUp to 550 MB/s Sequential Read * Performance may vary based on system hardware & configuration
- Sequential WriteUp to 520 MB/s Sequential Write * Performance may vary based on system hardware & configuration
- Random Read (4 KB, QD32)Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD32)Up to 90,000 IOPS Random Write * Performance may vary based on system hardware & configuration
- Random Read (4 KB, QD1)Up to 10,000 IOPS Random Read * Performance may vary based on system hardware & configuration
- Random Write (4 KB, QD1)Up to 42,000 IOPS Random Write * Performance may vary based on system hardware & configuration
Environment
- Power Consumption*Average: 2.2 W*Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
- Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
- Operating Temperature0 - 70 ℃ Operating Temperature
- Shock1,500 G & 0.5 ms (Half sine)
Software
- Management SWMagician Software for SSD management
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Samsung 860 EVO 500 GB 2.5" „Serial ATA III“ MLC
Slide 1 of 9
Brand:
Samsung
Produkto pavadinimas:
860 EVO
Prekės kodas:
MZ-76E500B/EU
EAN/UPC kodas:
8806088936017
- 500 GB 2.5" „Serial ATA III“
- Skaitymo laikas: 550 MB/s
- Rašymo laikas: 520 MB/s
- MLC
- Techninės įrangos šifravimas 256-bit AES
- S.M.A.R.T. palaikymas TRIM palaikymas
- Taikoma: Kompiuteris / knyginis kompiuteris
Specifikacijos
Savybės
NAND atminties kortelės tipas
MLC (Multi Level Cell)
Apsaugos algoritmų palaikymas
Security algorithms are used to provide authentication
256-bit AES
SSD disko talpa
The Solid State Drive's data storage capacity.
500 GB
SSD formos koeficientas
The size of the solid-state drive, given in inches
2.5"
Sąsaja
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA
„Serial ATA III“
Atminties tipas
Type of memory in the device e.g. DDR3
MLC
Taikoma
What this product is used as a part of (component for).
Kompiuteris / knyginis kompiuteris
Techninės įrangos šifravimas
Duomenų perdavimo sparta
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
6 Gbit/s
Skaitymo laikas
The speed at which a device can read data.
550 MB/s
Rašymo laikas
The speed at which a device can write data.
520 MB/s
Kontrolės tipas
Samsung MJX
DevSlp (prietaiso miego) palaikymas
S.M.A.R.T. palaikymas
TRIM palaikymas
Vidutinis laikas tarp trikčių (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
1500000 h
Energijos valdymas
Energijos suvartojimas (skaitymas)
2,2 W
Energijos suvartojimas (rašymas)
2,2 W
Galios suvartojimas (maks.)
The maximum amount of power used by the device.
4 W
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
100 mm
Ilgis
The distance from the front to the back of something.
6,8 mm
Aukštis
The measurement of the product from head to foot or from base to top.
69,8 mm
Svoris
Weight of the product without packaging (net weight). If possible
50 g
Pakuotės duomenys
Greitos pradžios vadovas
Instructions
Pakuotės tipas
The type of product package e.g. box.
„Box“
Aplinkos sąlygos
Darbo temperatūros diapazonas (TT)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Sandėliavimo temperatūros norma (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-45 - 85 °C
Darbo santykinės drėgmės diapazonas
5 - 95%
Sandėliavimo santykinis drėgmės diapazonas
5 - 95%
Ne-veiklos vibracijos
Environmental requirements for vibration in non-operating mode
20 G
Veiklos šokas
Environmental requirements for optimal protection from impact in operating mode
1500 G
Ne veiklos šokas
Environmental requirements for optimal protection from impact in non-operating mode
1500 G
Kitos savybės
Produkto spalva
The colour e.g. red
Juoda
Paleidimo data
12/21/2017
Logistikos duomenys
Darniosios sistemos (DS) kodas
84717070
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 109999000709 | ||
| Barkodas | 8806088936017 | ||
| Gamintojo kodas | MZ-76E500B/EU | ||
| Gamintojas | Samsung | ||
| Garantija (mėn.) | 60 | ||
