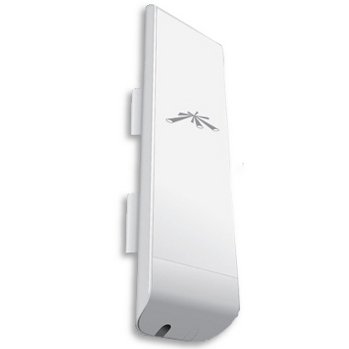

Ubiquiti NanoStaionM NSM5, Outdoor Access Point, PoE, 5GHz, 150+ Mbps, up to 15km range, whiteWith a panel antenna and dual-polarity performance, NanoStaionM is ideal for Point-to-MultiPoint (PtMP) applications that require high performance CPE devices with a minimal form factor. NanoStaionM does not require a lot of tools to be installed, all that is required is a wrench and we are mounting on a post.NanoStationM can be distributed for Point-to-Point (PtP) brewing, wireless connection to a video surveillance system, or as an airMAX CPE. With software-enabled PoE output, the other Ethernet port can be used to power an external device such as a surveillance camera with support for PoE.Dimensions (WxDxH): 80x31x294mm Weight: 400gconnectivity Technology WirelessAntenna BuiltWidth 8 cmData Link Protocol AirMaxDepth 3.1 cmFlash memory 8 MBform factor Externalfrequency Band 5 GHzfeatures MIMO Technology, Quality of Service (QoS), PulleyGain Level 16 dBiInterface 2 x 100Base-TX (PoE) - RJ-45Height 294 cmIncluded accessories PålmonteringInstalled processors 1 x Atheros MIPS 24KC 400 MHzHumidity during operation 5 - 95%Max number supported 1Max temperature during operation 75 ° CIncluded OS AirOSMy operating temperature -30 ° CFRAME 32 MB SDRAMRobust design OutsideStandards to be followed FCC Part 15.247, RSS-210, IC, RoHS, ETSI 300 019Standards to be followed IEEE 802.3afSupport for PoE (Power Over Ethernet) PoEType of device Wireless dockWeight 400 g
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Ubiquiti NanoStation M5 150 Mbit/ai Balta Maitinimas per Eternetą (PoE)
Slide 1 of 1
Brand:Ubiquiti
Produkto pavadinimas:NanoStation M5
Prekės kodas:NSM5
EAN/UPC kodas:3663311000427
5 GHz
Didžiausias duomenų perdavimo greitis: 150 Mbit/ai
The maximum speed with which data can be transmitted from one device to another.
150 Mbit/ai
Eterneto LAN duomenų perdavimo norma
The different speed levels of the Ethernet LAN connection.
10, 100 Mbit/ai
Dažnių juosta
A small section of the spectrum of radio communication frequencies
4.9 - 5.9 GHz
Tinklo standartai
The way in which the network is working
IEEE 802.3u
Ryšys
Ethernet LAN (RJ-45) portų kiekis
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Energijos valdymas
Maitinimas per Eternetą (PoE)
The device supports Power over Ethernet (PoE)
AC įėjimo įtampa
The voltage of the AC electricity that is inputted into the product.
24 V
Įvesties srovė
0.5 A
Energijos suvartojimas
Amount of power consumed by this model
8 W
Konstrukcija
Produkto spalva
The colour e.g. red
Balta
LED indikatoriai
Vidinis
The product is built in.
Antena
Antenos stiprinimo lygis (max)
Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction
16 dBi
Veikimo charakteristikos
Integruotas procesorius
Whether or not a processor is built into the device.
Veikimo charakteristikos
Procesoriaus modelis
The model number for the processor in a computer.
Qualcomm Atheros
Procesoriaus architektūra
MIPS 24Kc
Flash atmintis
8 MB
Vidinė atmintis
The amount of memory
64 MB
Sertifikatai
Sertifikavimas
FCC, CE, RoHS
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
80 mm
Ilgis
The distance from the front to the back of something.
31 mm
Aukštis
The measurement of the product from head to foot or from base to top.
294 mm
Svoris
Weight of the product without packaging (net weight). If possible
400 g
Kitos savybės
Maksimalus veikimo nuotolis
The maximum distance from which you can operate the device.
15000 m
Aplinkos sąlygos
Darbo santykinės drėgmės diapazonas
5 - 95%
Darbo temperatūros diapazonas (TT)
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 80 °C
Logistikos duomenys
Darniosios sistemos (DS) kodas
85176990
Specifikacija
Bendrosios charakteristikos:
Prekės kodas
569906000077
Barkodas
8103540225482
Gamintojo kodas
NSM5
Gamintojas
Ubiquiti Networks
Garantija (mėn.)
24
