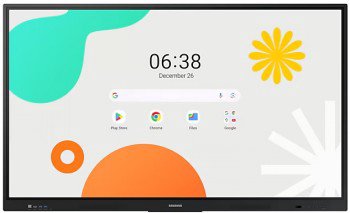

SAMSUNG WAF EBOARD WA65F, 65", ANDROID 14 (8GB RAM, 64GB STORAGE), UHD, IR TOUCH, 2XHDMI (CEC) 2.0,

Name: SAMSUNG WAF EBOARD WA65F, 65", ANDROID 14 (8GB RAM, 64GB STORAGE), UHD, IR TOUCH, 2XHDMI (CEC) 2.0,
Brand: Samsung
SKU: 109903000211
Availability: InStock

Prekės informacija

Kaina

1 238,00 €

Paskubėkite! Liko mažiau nei 5 vnt.

Į norų sąrašą

Galimi pristatymo būdai

Pristatymas kurjeriu

Standartinis pristatymas

15,99 €

liepos 20-22 d.

Apsaugokite savo įrenginį

Apdrauskite savo įrenginį ar apsisaugokite nuo papildomų išlaidų

nuo 160,00 €.

Prekės aprašymas

Unlimited Learning Possibilities

The interactive display WAF series, powered by Android OS, enhances education with Google services and a seamless annotation function. Instantly take notes at any moment and empower students to collaborate independently in separate zones, ushering in a new era of interactive education.

An intuitive UX that fits your needs

The WAF series offers familiarity to its users. It's compatible with other Android devices and provides a variety of widgets and an easily customizable home screen. These features create more flexibility in building an environment that suits various learning needs.

Effortless access to Google services

EDLA Certification

With an EDLA certification, the WAF series supports a variety of Google services like Google Play and YouTube. This access to major educational apps like Google Classroom leads to increased efficiency and enhanced communication with students.

Take notes instantly, anywhere on the screen

Annotation On

The WAF series lets users take notes anytime with a simple press of the always-visible Annotation button. Whether watching a video or viewing any content, users can seamlessly annotate without interruptions, avoiding the need to capture images first and enhancing productivity.

Take notes instantly, anywhere on the screen

Write independently, learn together

Split Note Mode

The upgraded Note app allows up to four independent note zones on a single page, enabling multiple students to use the whiteboard simultaneously. Students can work in their own zones without affecting others, fostering both collaboration and individual learning.

Display multiple screens simultaneously

Easy Multitasking

The split screen and multi-window, enable teachers to easily display information and multitask at the same time on the WAF series. This flexibility provides convenient access to all the screens required to create engaging learning environments.

Smart, wireless sharing on multiple devices

Powerful Screen Sharing

The WAF series supports screen mirroring for up to nine devices, increasing student engagement. This feature ensures every student is included and engaged as content can be shared on both the large display and individual devices. It can be used on iOS, Mac, Windows, Android.

Smart, wireless sharing on multiple devices

Better interaction with best-in-class multi-touch

Multi-point touch drawing

Multiple users can write and draw on the whiteboard at the same time with the display’s advanced multi-touch capabilities. Up to 40 simultaneous touchpoints are possible, allowing large groups of students and teachers to collaborate and learn together in a fun and natural way.

Better interaction with best-in-class multi-touch

Switch pens without changing settings

Dual Pen

The dual pen function enables the use of two different writing tools with no downtime. With the double-sided nib applied, users can effortlessly switch between two different colors on the front and back side of the pen – without needing to change the settings or interrupt the flow of the lesson.

Front panel controls for intuitive navigation

Quick Access Controls

The WAF includes front-facing physical controls for quick access to frequently used functions. These intuitive controls allow users to operate the interactive display more efficiently, enhancing the overall user experience.

Front panel controls for intuitive navigation

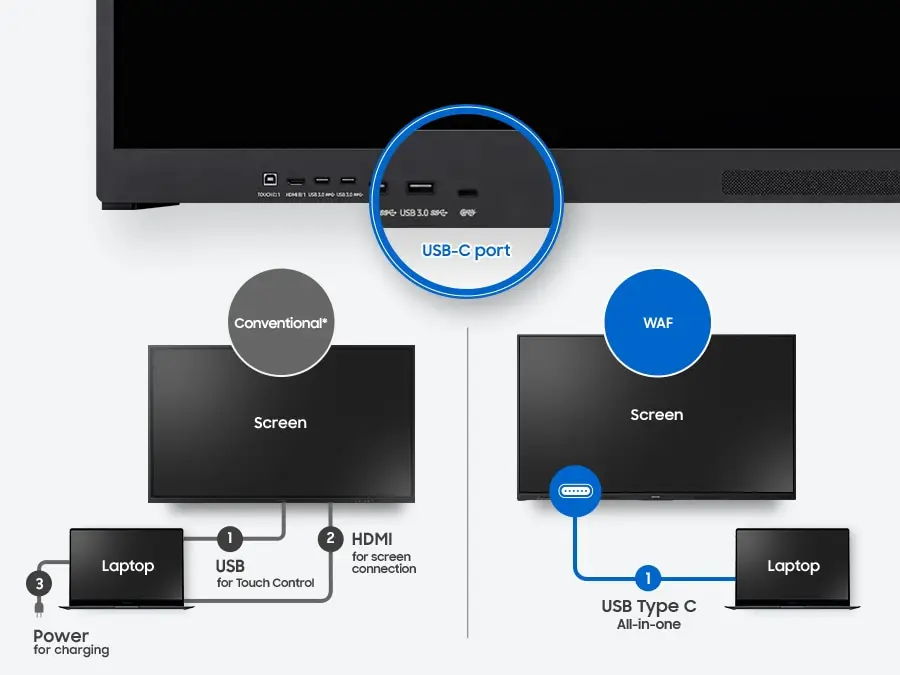

Convenient connectivity with USB-C

Connectivity is enhanced with the 3-in-1 USB-C port, enabling screen mirroring, touch control and external device charging (max. 65W). Teachers can simply connect to the USB Type-C port, allowing them to deliver interactive and engaging lessons without any hassle.

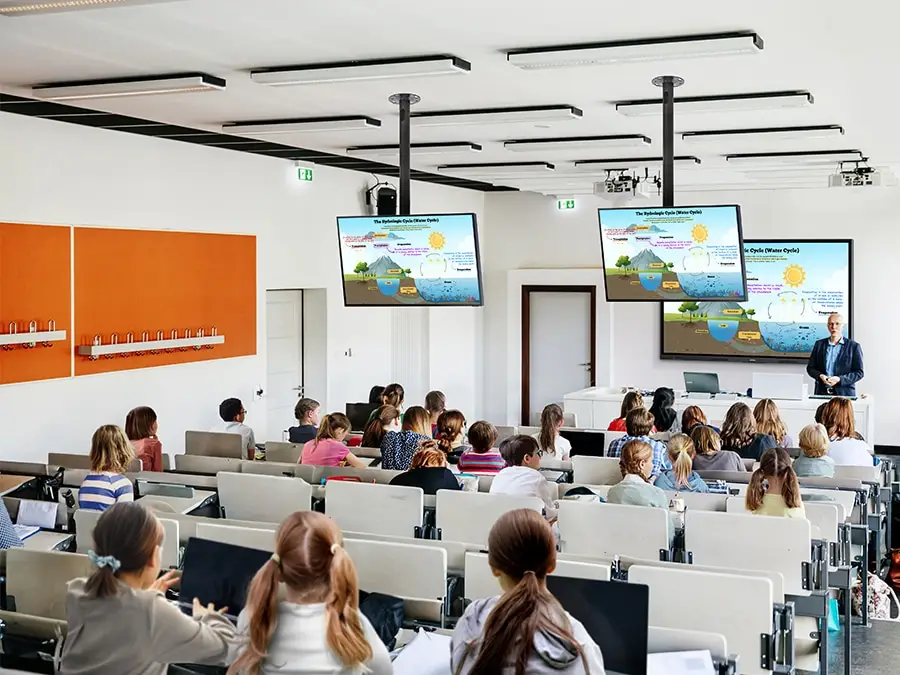

Accessible content for any class size

With the HDMI Out function, whiteboard screen content can be shared on a different and larger screen in the classroom. This feature ensures teachers can provide a real-time, interactive experience for students who can easily view the screen content regardless of where they sit in the classroom.

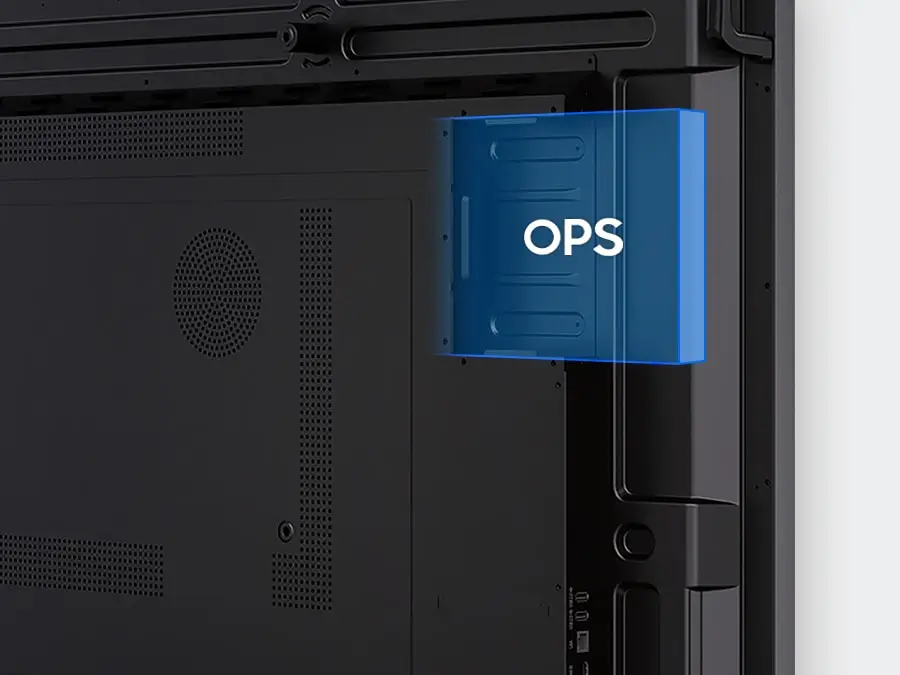

Use your favorite OS for the learning

The OPS slot in the WAF series can transform the interactive display into a Windows device, eliminating the need for an extra PC or devices. Users will have access to all the features and functionalities they are familiar with from a standard computer, directly on the display.

Prev Next

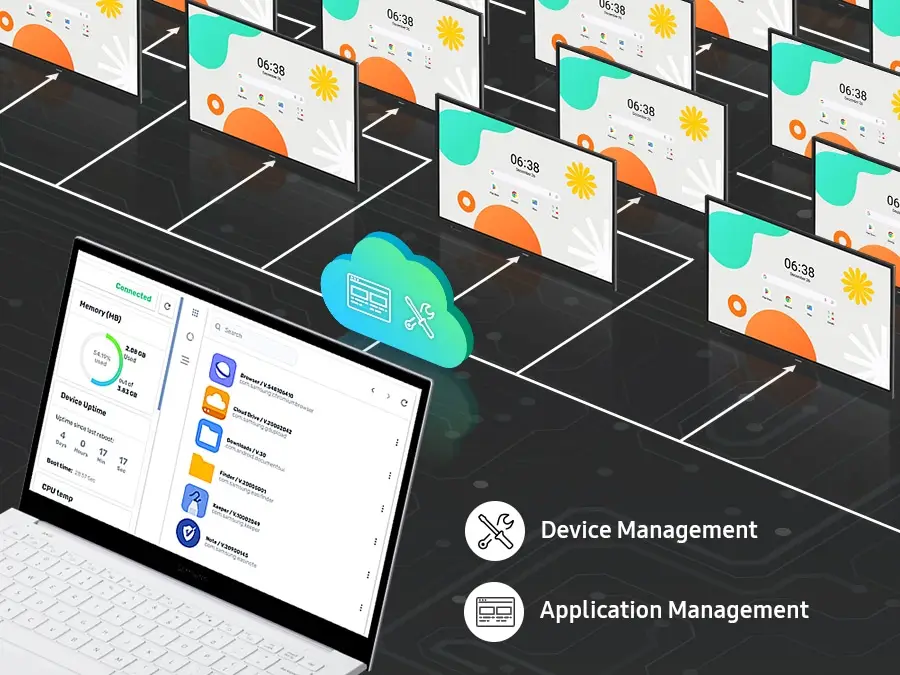

Seamless management, efficient operations

The WAF series provides a device management solution* essential for advanced educational environments. This solution optimizes the remote management of whiteboard settings and applications, guaranteeing operational efficiency and stability.
Notify across multiple devices, immediately

Send important messages across campuses, classrooms and public spaces immediately. Urgent communications are displayed on interactive whiteboards so students and other personnel are alerted in real time.

Prev Next

Photo Gallery

65"

Diagonal Size

IPS

Panel Type

3,840 x 2,160

Resolution

372(H)x372(V)

Pixel Pitch (HxV)

SHOW MORE SPECS

Display

Diagonal Size
65"
Panel Type
IPS
Resolution
3,840 x 2,160
Pixel Pitch (HxV)
372(H)x372(V)
Brightness (Typ)
400nit
Contrast Ratio
1,200:1
Viewing Angle (Horizontal/Vertical)
178/178
Response Time
8ms
Colour Gamut
72%
Glass Haze
25%
H-Scanning Frequency
135 kHz
Maximum Pixel Frequency
78MHz
V-Scanning Frequency
60Hz
Operation Time Support
12/7

Connectivity

HDMI In
2
Version of HDMI
2.1
Version of HDCP
2.1
USB
4
Audio In
Stereo Mini Jack
Audio Out
Stereo Mini Jack
Video Out
Yes
RS232 In
Yes
RJ45 In
Yes
WiFi
Wi-Fi 5: 802.11ac
Bluetooth
Yes

Power

Power Supply
AC100-240V 50/60Hz
Power Consumption (On Mode)
409 W
Power Consumption (Sleep Mode)
0.5 W

Dimension

Set Dimension (WxHxD)
1482.1 x 897.5 x 87.7 mm
Package Dimension (WxHxD)
1640 x 1010 x 185 mm

Weight

Set Weight
36.2 kg
Package Weight
44.5 kg

Operation Conditions

Temperature
0℃~40℃
Humidity
10 ~ 80%, non-condensing

Mechanical Specification

VESA Mount
600 x 400 mm
Bezel Width
14.0mm
Bezel Color
Black
Frame Material
Aluminium

Optional Feature

Touch
Yes

SoC

OS Version
Android-14
Flash Memory Size
64GB

Touch

Touch Technology
IR

Certification and Compliance

EMC
FCC CFR Title 47, Part 15, Subpart B/EN55032:2015+A11:2020
Safety
IEC62368-1/UL62368-1/IEC60950-1 / IS13252

*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.

Bendra informacija

Samsung WA65F Interaktyvioji lenta 165,1 cm (65") 3840 x 2160 pikseliai Lietimui jautrus ekranas Juoda

Slide 1 of 19

Brand: Samsung

Produkto pavadinimas: WA65F

Prekės kodas: LH65WAFWLGCXEN

EAN/UPC kodas: 8806095981819

8592978644505

Lietimui jautrus ekranas 165,1 cm (65") IPS Juoda
4K Ultra HD 3840 x 2160 pikseliai
400 cd/m² 1200:1 8 ms
Wi-Fi 5 (802.11ac) Bluetooth Ethernet LAN jungtis
VESA tvirtinimo pagrindas 600 x 400 mm

Brochure Samsung LH65WAFWLGCXEN (pdf)

Specifikacijos

Ekranas

Ekrano įstrižainė

165,1 cm (65")

Ekrano ryškumas

400 cd/m²

Ekrano rezoliucija

3840 x 2160 pikseliai

HD tipas

4K Ultra HD

Skydo tipas

IPS

Kontrasto santykis (tipinis)

1200:1

Reakcijos laikas

8 ms

Vaizdo elementų dažnis (didž.)

78 MHz

Lietimui jautrus ekranas

Liečiamo ekrano tipas

Infraraudonieji

Matymo kampas, horizontalus

178°

Matymo kampas, vertikalus

178°

Pikselių žingsnis

372 x 372 mm

Spalvų gama

72%

Miglotumo koeficientas

25%

Kompiuterinė sistema

Numatyta operacinė sistema

Android

Operacinės sistemos versija

Naudotojo atmintis

64 GB

Tinklas

„Wi-Fi“

„Wi-Fi“ standartas

Wi-Fi 5 (802.11ac)

Wi-Fi standartai

Wi-Fi 5 (802.11ac)

Bluetooth

Ethernet LAN jungtis

Ryšys

HDCP

HDCP versija

2.1

USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius

USB 2.0 portų kiekis

HDMI portų kiekis

USB tipo C prievadų kiekis

HDMI versija

2.1

Ethernet LAN (RJ-45) portų kiekis

Ryšys

Įvedimas

Išvedimas

Ausinių jungtis

3,5 mm

RS-232 portai

Vaizdo „out“ jungtis

Taip

Ergonomija

Produkto spalva

Juoda

VESA tvirtinimo pagrindas

Suderinama su VESA sienos tvirtinimo sistema

600 x 400 mm

Sertifikavimas

IEC62368-1/UL62368-1/IEC60950-1 / IS13252

Veikimo charakteristikos

Darbo valandos (valandos / dienos)

12/7

Energijos valdymas

Energijos suvartojimas

409 W

Energijos suvartojimas (laukimo režimu)

0,5 W

Energijos suvartojimas (sleep mode)

0,5 W

AC įėjimo įtampa

100-240 V

AC įėjimo dažnis

50/60 Hz

Aplinkos sąlygos

Darbo temperatūros diapazonas (TT)

0 - 40 °C

Darbo santykinės drėgmės diapazonas

10 - 80%

Svoris ir matmenys

Plotis

1482,1 mm

Ilgis

87,7 mm

Aukštis

897,5 mm

Svoris

36,2 kg

Pakuotės duomenys

Pakuotės plotis

1640 mm

Pakuotės gylis

185 mm

Pakuotės aukštis

1010 mm

Paketo svoris

44,5 kg

Pakuotės turinys

Pridedamas nuotolinio valdymo pultelis

Pridėtas pieštukas ekranui

Tvarumas

Atitikties sertifikatai

Federalinė ryšių komisija (FCC)

Specifikacija

Pagrindinė specifikacija:
Jungtys	Audio (3.5mm), Ethernet (RJ-45), HDMI 2.1, Serial (RS-232), USB

Bendrosios charakteristikos:
Prekės kodas	109903000211
Barkodas	8806095981819
Gamintojo kodas	LH65WAFWLGCXEN
Gamintojas	Samsung
Garantija (mėn.)	36
Reakcijos laikas (ms)	8

*Nuotraukos ir video nuorodos pateikiamos tik iliustraciniais tikslais. Pateikta informacija ir komplektacija gali skirtis priklausomai nuo regiono ar šalies. Prekės pavadinimas pateiktas tiekėjų kaip ir prekių spalva, parametrai, matmenys ir/arba kitos savybės gali atrodyti kitaip ir skirtis nuo originalios prekės, todėl prašome vadovautis prekių savybėmis pagal pateiktą gamintojo barkodą/gaminio kodą. Prekių kiekis ribotas.
