Pagrindinė plokštė GIGABYTE MB H110/GA-H110M-S2H
Išparduota
Įveskite el. pašto adresą, telefono nr. ir gaukite priminimą, kai prekė atsiras prekyboje.
Į norų sąrašą
Prekės aprašymas
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija

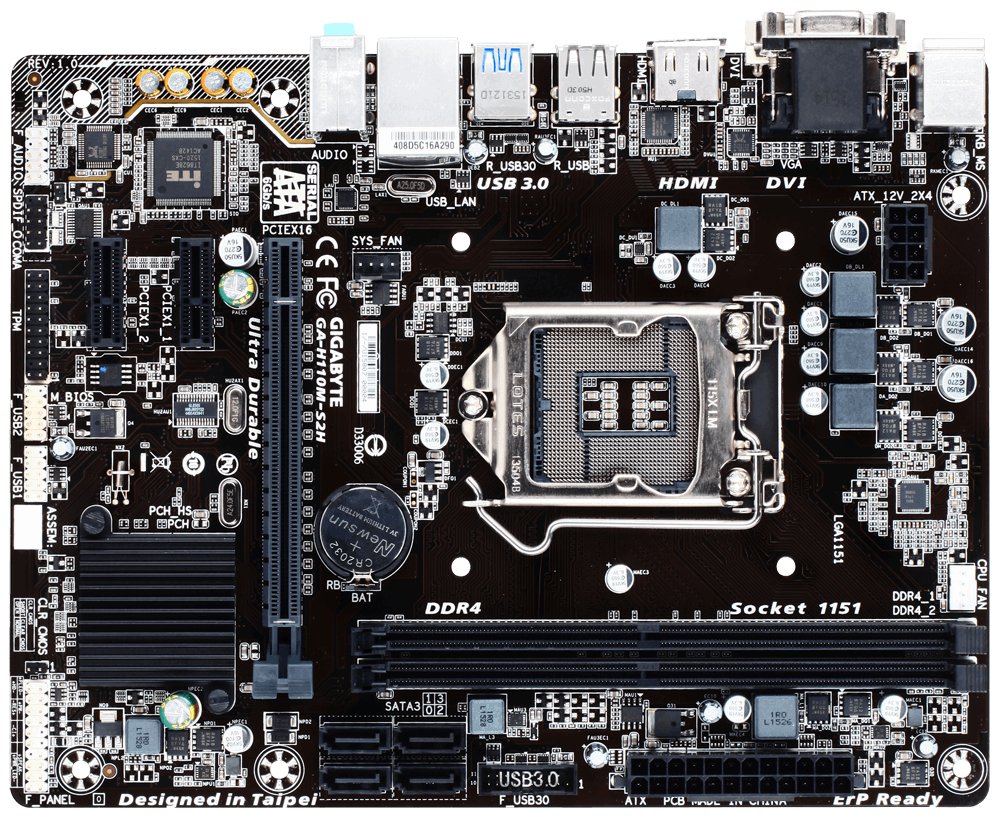

GIGABYTE GA-H110M-S2H pagrindinė plokštė Intel® H110 LGA 1151 (H4 lizdas) „micro ATX“
Slide 1 of 4
Brand:
GIGABYTE
Produkto pavadinimas:
GA-H110M-S2H
Prekės kodas:
GA-H110M-S2H
EAN/UPC kodas:
4719331837310
- Intel LGA 1151 (H4 lizdas) „Intel® Celeron®“, „Intel® Pentium®“
- PC „micro ATX“ Intel® H110 7.1 kanalai
- DDR4-SDRAM 2 DIMM Maksimali vidinė atmintis: 32 GB
- SATA III
- Intel HD Graphics 512
- BIOS tipas: UEFI AMI ACPI versija: 5.0 CMOS jutiklio valymo jungė
- Gigabitinis eternetas
Specifikacijos
Procesorius
Procesoriaus gamintojas
The manufacturer that produced the processor.
Intel
Procesoriaus lizdas
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1151 (H4 lizdas)
Procesorių suderinamumas
A processor which is compatible with this device
„Intel® Celeron®“, „Intel® Pentium®“
Maksimalus SMP procesorių skaičius
1
Atmintis
Palaikomi atminties tipai
Types of memory which can be used with the product.
DDR4-SDRAM
Atminties angų skaičius
2
Atminties angų tipas
A memory slot
DIMM
Atminties kanalai
Dviejų kanalų
ECC suderinamumas
Ne-ECC
Palaikomi atminties laikrodžio greičiai
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
2133 MHz
Maksimali vidinė atmintis
The maximum internal memory which is available in the product.
32 GB
Duomenų laikymo valdikliai
Palaikomi saugojimo kaupiklių sąsajos
SATA III
Grafika
Maksimali grafikos adapterio atmintis
Graphics memory is determined by the (graphic) processor. Graphics memory is often shared with system memory so that it varies depending on the amount of system memory installed and system load.
512 MB
Grafinio adapterio šeima
Intel
Grafikos adapteris
HD Graphics
Maksimali rezoliucija
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height
1920 x 1200 pikseliai
Vidinis I/O
USB 2.0 jungtys
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
USB 3.2 (3.1 1 kart.) jungtys
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
SATA III jungčių skaičius
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
S/PDIF out jungtis
Priekinio skydelio audio jungtis
ATX maitinimo jungtis
Galios ventiliatorių jungtis
CPU fan jungtis
TPM jungtis
Galinė panelė I/O jungtys
USB 2.0 portų kiekis
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")
4
Galinė panelė I/O jungtys
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius
2
Ethernet LAN (RJ-45) portų kiekis
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
PS/2 portų kiekis
The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.
2
VGA (D-Sub) portų kiekis
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
HDMI portų kiekis
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
DVI-D prievadų skaičius
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device
1
Mikrofonas, line-in jack
The socket where a microphone is connected to the device.
Tinklas
Ethernet LAN jungtis
An Ethernet LAN (Local Area Network) interface is present
Eterneto sąsajos tipas
Gigabitinis eternetas
Savybės
Pagrindinės plokštės lustas
The chipset connects the microprocessor to the rest of the motherboard.
Intel® H110
Garso išvesties kanalai
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 kanalai
Taikoma
What this product is used as a part of (component for).
PC
Motininės plokštės formos faktorius
Design of the motherboard (ATX
„micro ATX“
Motininės plokštės sisteminio valdiklio šeima
The category of motherboard chipset e.g. Intel
Intel
Maitinimo šaltinio tipas
What the power source is.
ATX
Palaikomos „Windows“ operacinės sistemos
Windows vesions wich can be used with the device.
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64
Plėtotės lizdas
PCI Express x 1 lizdai
2
PCI Express x 16 lizdai
1
BIOS
BIOS tipas
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
ACPI versija
5.0
CMOS jutiklio valymo jungė
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
226 mm
Ilgis
The distance from the front to the back of something.
170 mm
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 993006109032 | ||
| Barkodas | 4719331837310 | ||
| Gamintojo kodas | GA-H110M-S2H | ||
| Gamintojas | GIGABYTE | ||
| Garantija (mėn.) | 36 | ||
