Pagrindinė plokštė ASUS TUFB450-PROGAMING
Išparduota
Įveskite el. pašto adresą, telefono nr. ir gaukite priminimą, kai prekė atsiras prekyboje.
Į norų sąrašą
Prekės aprašymas
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija

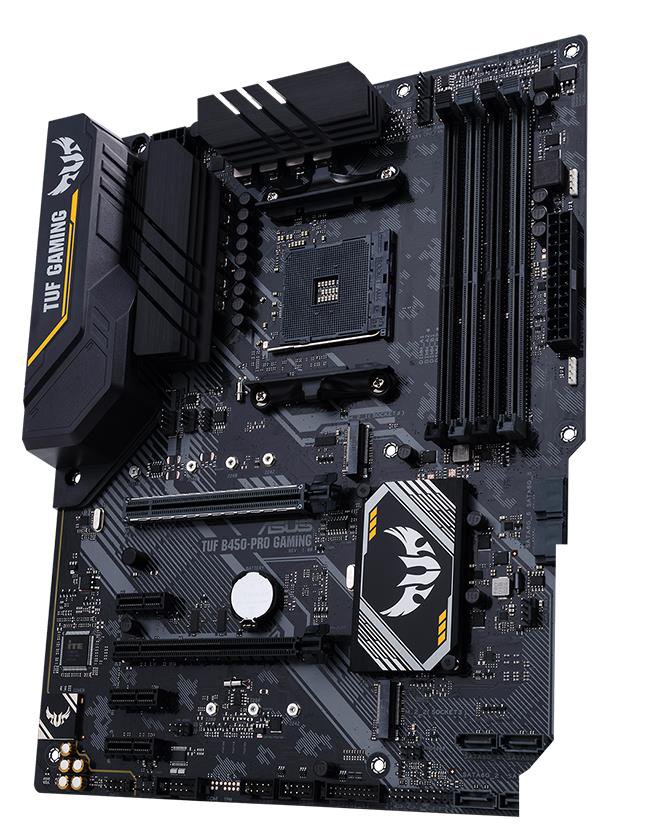

ASUS TUF B450-PRO GAMING AMD B450 AM4 lizdas ATX
Slide 1 of 4
Brand:
ASUS
Produkto pavadinimas:
TUF B450-PRO GAMING
Prekės kodas:
90MB10C0-M0EAY0
EAN/UPC kodas:
4718017131995
0192876131992, 192876131992
- AMD AM4 lizdas AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
- PC ATX AMD B450 Realtek ALC S1220A 8.0 kanalai
- DDR4-SDRAM 4 DIMM Maksimali vidinė atmintis: 64 GB
- CrossFireX
- BIOS tipas: UEFI AMI 128 Mbit ACPI versija: 6.1 CMOS jutiklio valymo jungė
- Gigabitinis eternetas
Specifikacijos
Procesorius
Procesoriaus gamintojas
The manufacturer that produced the processor.
AMD
Procesoriaus lizdas
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
AM4 lizdas
Procesorių suderinamumas
A processor which is compatible with this device
AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Atmintis
Palaikomi atminties tipai
Types of memory which can be used with the product.
DDR4-SDRAM
Atminties angų skaičius
4
Atminties angų tipas
A memory slot
DIMM
Atminties kanalai
Dviejų kanalų
ECC suderinamumas
ECC
Palaikomi atminties laikrodžio greičiai
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
2133, 2400, 2666, 2800, 3000, 3200, 3466, 3533 MHz
Maksimali vidinė atmintis
The maximum internal memory which is available in the product.
64 GB
Duomenų laikymo valdikliai
RAID lygiai
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 10
Grafika
Paralelinio apdorojimo technologijos parama
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
CrossFireX
Integruotas grafikos adapteris
Graphics hardware which is built into the motherboard or CPU
Maksimali rezoliucija
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height
4096 x 2160 pikseliai
Palaikoma diskrečioji grafika
Vidinis I/O
USB 2.0 jungtys
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
USB 3.2 (3.1 1 kart.) jungtys
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
SATA III jungčių skaičius
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
6
S/PDIF out jungtis
CPU fan jungtis
Šasi fenų jungčių skaičius
3
COM jungčių skaičius
1
Galinė panelė I/O jungtys
USB 2.0 portų kiekis
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius
2
USB 3.2 (3.1 1 kart.) C tipo prievadų skaičius
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
USB 3.2 2 kart. (3.1 2 kart.) A tipo prievadų skaičius
2
Ethernet LAN (RJ-45) portų kiekis
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
PS/2 portų kiekis
The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.
1
HDMI portų kiekis
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Galinė panelė I/O jungtys
HDMI versija
2.0b
DVI-D prievadų skaičius
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device
1
Ausinių išvestys
Number of sockets /ports where headphones are connected.
1
Mikrofonas, line-in jack
The socket where a microphone is connected to the device.
Tinklas
Ethernet LAN jungtis
An Ethernet LAN (Local Area Network) interface is present
Eterneto sąsajos tipas
Gigabitinis eternetas
LAN kontroleris
Realtek RTL8111H
Savybės
Pagrindinės plokštės lustas
The chipset connects the microprocessor to the rest of the motherboard.
AMD B450
Garso lustas
Realtek ALC S1220A
Garso išvesties kanalai
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
8.0 kanalai
Taikoma
What this product is used as a part of (component for).
PC
Motininės plokštės formos faktorius
Design of the motherboard (ATX
ATX
Motininės plokštės sisteminio valdiklio šeima
The category of motherboard chipset e.g. Intel
AMD
Palaikomos „Windows“ operacinės sistemos
Windows vesions wich can be used with the device.
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 x64
Plėtotės lizdas
PCI „Express“ x1 (2.x kart.) angos
3
PCI „Express“ x16 (3.x kart.) angos
Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.
1
M.2 (M) angų skaičius
1
BIOS
BIOS tipas
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
BIOS atminties dydis
128 Mbit
ACPI versija
6.1
CMOS jutiklio valymo jungė
„Plug and Play“ funkcija
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
305 mm
Ilgis
The distance from the front to the back of something.
244 mm
Pakuotės turinys
Pridėti kabeliai
SATA
Instrukcija
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906007085 | ||
| Barkodas | 4718017131995 | ||
| Gamintojo kodas | TUFB450-PROGAMING | ||
| Gamintojas | ASUS | ||
| Garantija (mėn.) | 36 | ||
*Nuotraukos ir video nuorodos pateikiamos tik iliustraciniais tikslais. Pateikta informacija ir komplektacija gali skirtis priklausomai nuo regiono ar šalies. Prekės pavadinimas pateiktas tiekėjų kaip ir prekių spalva, parametrai, matmenys ir/arba kitos savybės gali atrodyti kitaip ir skirtis nuo originalios prekės, todėl prašome vadovautis prekių savybėmis pagal pateiktą gamintojo barkodą/gaminio kodą. Prekių kiekis ribotas.
