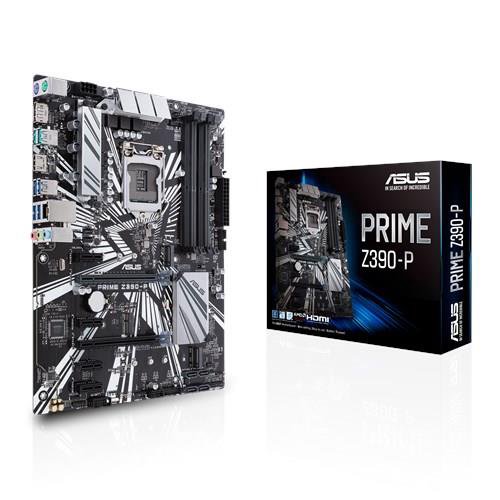

Pagrindinė plokštė ASUS PRIME Z390-P
Tik internetu
Išparduota
Įveskite el. pašto adresą, telefono nr. ir gaukite priminimą, kai prekė atsiras prekyboje.
Į norų sąrašą
Prekės aprašymas
Intel LGA 1151 ATX motherboard with OptiMem II, DDR4 4266 MHz, Dual M.2, HDMI, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2
- OptiMem II: Careful routing of traces and vias, plus ground layer optimisations to preserve signal integrity for improved memory overclocking
- Enhanced power solution: Premium components provide better power efficiency
- UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
- Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
- Ultrafast connectivity: Dual native M.2 and NVMe PCIe RAID support for lightning-fast storage speeds
- 5X Protection III: Multiple hardware safeguards for all-round protection
PRIME Z390-P
Dressed in professional attire, the Prime Z390 series caters to daily users and content creators with well-rounded specs and features. Combining the benefits of the latest processors with essential ASUS design and engineering, Prime Z390 provides a wealth of options for performance tuning via intuitive software and firmware features.
Tune it your way
Prime Z390 simplifies CPU overclocking with software and extensive tweaking options that give beginners and seasoned overclockers alike the tools to build well-tuned machines. A new memory trace layout provides stability and compatibility for both traditional DIMMs and RGB-infused memory, letting you pair a broad choice of DRAM kits with your build.
- All-round energy efficiencyWith the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode. — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
- Flexible cooling controls for air or liquidWith Prime Z390-P you have comprehensive control over fans via Fan Xpert 4 or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.
OptiMem II
Reimagined from the ground up
To provide Intel's latest processors' unfettered access to memory bandwidth, we've re-imagined motherboard trace routing from the ground up. Our OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customised T-Topology layout that delivers time-aligned signalling.
To provide Intel's latest processors' unfettered access to memory bandwidth, we've re-imagined motherboard trace routing from the ground up. Our OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customised T-Topology layout that delivers time-aligned signalling.
ASUS OptiMem II benefits:
Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin
Cool and Reliable
Enhanced power delivery
Prime Z390-P adjusts power delivery based on the number of power phases, optimizing power and efficiency for the latest Intel processors.
ProCool power connector
Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.
Built to Last
ASUS motherboards are exhaustively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation — offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications.
Protection III
5X
Hardware safeguards to ensure long-term durability.
DDR4 compatibility
520+
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.
compatible devices
1000+
Compatibility with a range of CPUs, memory modules, graphics cards and more.
validation hours
8000+
Extensive testing with latest components for enhanced reliability, compatibility and safety.
SafeSlot Core
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.
ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.
ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.
Ultrafast connectivity
- M.2Speed up with onboard M.2 up to 32Gbps
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data. - Intel Optane memoryIntel Optane memory ready
Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime Z390-P. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive. - USB 3.1 Gen 2Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps. - USB 3.1 Gen 1 Front Panel ConnectorFuture-proof connectivity
USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
Visual beauty
ASUS Lighting Control
Brighten up your build
With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolor lighting displays with static, blinking, fading, and strobing effects.
* The RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
** RGB LED Strips are sold separately.
* The RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
** RGB LED Strips are sold separately.
Upgrade to unrivalled audio
Outstanding audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Premium Japanese audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
- CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset Intel® Z390
- Memory 4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor. - Graphic Integrated Graphics Processor- Intel® UHD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays - Multi-GPU Support Supports AMD CrossFireX™ Technology
- Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module*
*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
* The Wi-Fi/BT module is purchased separately - Storage Intel® Z390 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card - LAN Realtek® RTL8111H, support LANGuard
- Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output. - USB Ports Intel® Z390 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
Intel® Z390 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board)
Intel® Z390 Chipset :
3 x USB 2.0/1.1 port(s) - Special Features Fan Xpert4
- Advanced fan and liquid controls for ultimate cooling and quietness
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS Optimem II：
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
MemOK! II
- Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
Q-Installer
- Auto download driver and software. Friendly for first PC builder. - Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 Type-A,
4 x USB 3.2 Gen 1 Type-A
3 x 8-channel Audio I/O - Internal I/O 1 x Lighting Control RGB Strip Header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 1 with E key, type 2230 Wi-Fi/BT device support or Intel® CNVi (Integrated Wi-Fi/BT) module
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! II switch(es)
1 x Clear CMOS jumper(s)
1 x System panel connector - Accessories User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x SCD - BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Support Disc Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
- Operating System Windows® 10 64-bit
- Form Factor ATX Form Factor
12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) - Management Solution WOL by PME, PXE
- Note *1.When a device in SATA mode is installed on the M.2_1 socket, SATA6G_2 port cannot be used.
This content uses cookies to improve your experience. By continuing, you agree to this use. Learn More at https://www.flixmedia.com/privacy-notice
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
ASUS PRIME Z390-P Intel Z390 LGA 1151 (H4 lizdas) ATX
Slide 1 of 4
Brand:
ASUS
Produkto pavadinimas:
PRIME Z390-P
Prekės kodas:
90MB0XX0-M0EAY0
EAN/UPC kodas:
4718017128490
0192876128497, 192876128497
- Intel LGA 1151 (H4 lizdas) „Intel® Celeron®“, „Intel® Pentium®“
- PC ATX Intel Z390 7.1 kanalai
- DDR4-SDRAM 4 DIMM Maksimali vidinė atmintis: 64 GB
- CrossFireX Intel UHD Graphics
- BIOS tipas: UEFI AMI 16 Mbit ACPI versija: 6.1 CMOS jutiklio valymo jungė
Specifikacijos
Procesorius
Procesoriaus gamintojas
The manufacturer that produced the processor.
Intel
Procesoriaus lizdas
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1151 (H4 lizdas)
Procesorių suderinamumas
A processor which is compatible with this device
„Intel® Celeron®“, „Intel® Pentium®“
Atmintis
Palaikomi atminties tipai
Types of memory which can be used with the product.
DDR4-SDRAM
Atminties angų skaičius
4
Atminties angų tipas
A memory slot
DIMM
Atminties kanalai
Dviejų kanalų
ECC suderinamumas
Ne-ECC
Palaikomi atminties laikrodžio greičiai
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266 MHz
Maksimali vidinė atmintis
The maximum internal memory which is available in the product.
64 GB
Nebuferizuota atmintis
Duomenų laikymo valdikliai
RAID lygiai
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 5, 10
Grafika
Paralelinio apdorojimo technologijos parama
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
CrossFireX
Grafinio adapterio šeima
Intel
Grafikos adapteris
UHD Graphics
Maksimali rezoliucija
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height
4096 x 2160 pikseliai
Vidinis I/O
USB 2.0 jungtys
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
USB 3.2 (3.1 1 kart.) jungtys
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
2
SATA III jungčių skaičius
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Priekinio skydelio audio jungtis
ATX maitinimo jungtis
EATX maitinimo jungčių skaičius
1
CPU fan jungtis
Šasi fenų jungčių skaičius
2
COM jungčių skaičius
1
Galinė panelė I/O jungtys
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius
4
USB 3.2 2 kart. (3.1 2 kart.) A tipo prievadų skaičius
2
Ethernet LAN (RJ-45) portų kiekis
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
PS/2 portų kiekis
The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.
2
HDMI portų kiekis
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
„DisplayPort“ kiekis
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
Ausinių išvestys
Number of sockets /ports where headphones are connected.
1
Galinė panelė I/O jungtys
Mikrofonas, line-in jack
The socket where a microphone is connected to the device.
Tinklas
Ethernet LAN jungtis
An Ethernet LAN (Local Area Network) interface is present
LAN kontroleris
Realtek RTL8111H
Savybės
Pagrindinės plokštės lustas
The chipset connects the microprocessor to the rest of the motherboard.
Intel Z390
Garso išvesties kanalai
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 kanalai
Taikoma
What this product is used as a part of (component for).
PC
Motininės plokštės formos faktorius
Design of the motherboard (ATX
ATX
Motininės plokštės sisteminio valdiklio šeima
The category of motherboard chipset e.g. Intel
Intel
Palaikomos „Windows“ operacinės sistemos
Windows vesions wich can be used with the device.
Windows 10
Plėtotės lizdas
PCI „Express“ x1 (3.x kart.) angos
4
PCI „Express“ x16 (3.x kart.) angos
Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.
2
M.2 (M) angų skaičius
2
BIOS
BIOS tipas
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
BIOS atminties dydis
16 Mbit
ACPI versija
6.1
CMOS jutiklio valymo jungė
Procesorius ypatumus
„Intel® Clear Video HD“ technologija („Intel® CVT HD“)
See the World More Vividly
Intel® Clear Video HD Technology delivers cleaner, sharper images, more natural, accurate, and vivid colors. View images as they were meant to be seen on devices featuring Intel® Core™ processors with Intel® Graphics Technology.
„Intel®Rapid Storage“ technologija
„Intel® Turbo Boost“ technologija
Intel Turbo Boost Technology automatically allows processor cores to run faster than the base operating frequency if they’re operating below power
3.0
„Intel®Extreme Memory Profile“ (XMP)
„Intel® Quick Sync Video“ technologija
Create, Edit, and Share Video in a Flash
Intel® Quick Sync Video uses the dedicated media processing capabilities of Intel® Graphics Technology to make video encoding tasks—such as creating DVDs or Blu-ray discs, creating and editing 3D videos, converting 2D video files into 3D, and converting video for portable media players and social networking sites—faster and easier.
„Intel® Insider™“
Experience a whole new level of premium HD entertainment with Intel® Insider™—available exclusively with 5th generation Intel® Core™ processors.
Intel® „InTru™ 3D“ technologija
Add a new dimension to your viewing experience. Now you can play games and watch your favorite 3D movies with Blu-ray Stereo 3D playback using passive or active shutter 3D glasses. InTru™ 3D technology by Intel in association with Dreamworks delivers it all in 1080p full high-definition resolution on your TV over HDMI 1.4.
„Intel® Optane™ Memory Ready“
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
305 mm
Ilgis
The distance from the front to the back of something.
234 mm
Pakuotės turinys
Pridėti kabeliai
SATA
Instrukcija
Kitos savybės
M.2 (E) angų skaičius
1
Specifikacija
| Pagrindinė specifikacija: | |||
|---|---|---|---|
| RAM Dažnis (MHz) | 2400 MHz | ||
| Atminties tipas | DDR4, DIMM, non-ECC, Unbuffered | ||
| Maksimali atmintis (GB) | 64 GB | ||
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906008339 | ||
| Barkodas | 4718017128490 | ||
| Gamintojo kodas | 90MB0XX0-M0EAY0 | ||
| Gamintojas | ASUS | ||
| Garantija (mėn.) | 36 | ||
| Procesoriaus lizdo tipas | LGA1151 | ||
| Garso plokštė | Realtek ALC887 | ||
*Nuotraukos ir video nuorodos pateikiamos tik iliustraciniais tikslais. Pateikta informacija ir komplektacija gali skirtis priklausomai nuo regiono ar šalies. Prekės pavadinimas pateiktas tiekėjų kaip ir prekių spalva, parametrai, matmenys ir/arba kitos savybės gali atrodyti kitaip ir skirtis nuo originalios prekės, todėl prašome vadovautis prekių savybėmis pagal pateiktą gamintojo barkodą/gaminio kodą. Prekių kiekis ribotas.
