Pagrindinė plokštė ASUS 90MB1GY0-M0EAY0
Tik internetu
Kaina
140,00 €
Šią prekę rasite tik internete.
Į norų sąrašą
Pristatymas ir atsiėmimas
Pristatymas į namus ar paštomatą
kovo 23-25 d.
Jums būtinai prireiks
Pagrindinė plokštė ASUS 90MB1GY0-M0EAY0
140,00 €
TOPO KLUBO nariams
0,00 €
Perkama prekė
TOPO KLUBO nariams
undefined
Rinkinio kaina
280,99 €
TOPO KLUBO nariams
undefined
Į krepšelį
Dažnai perkama kartu
- Tik internetu114,00 €Add to wishlist
- Tik internetu96,99 €Add to wishlist
- Tik internetu110,00 €Add to wishlist
- Tik internetu127,00 €Add to wishlist
- Tik internetu132,00 €Add to wishlist
- Tik internetu111,00 €Add to wishlist
- Tik internetu114,00 €Add to wishlist
- Tik internetu135,00 €Add to wishlist
- Tik internetu88,49 €Add to wishlist
- Tik internetu60,49 €Add to wishlist
Item 1 of 25
Prekės aprašymas
Intel® B760 (LGA 1700) micro-ATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps, front USB 5Gbps Type-C®, Aura Sync
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija

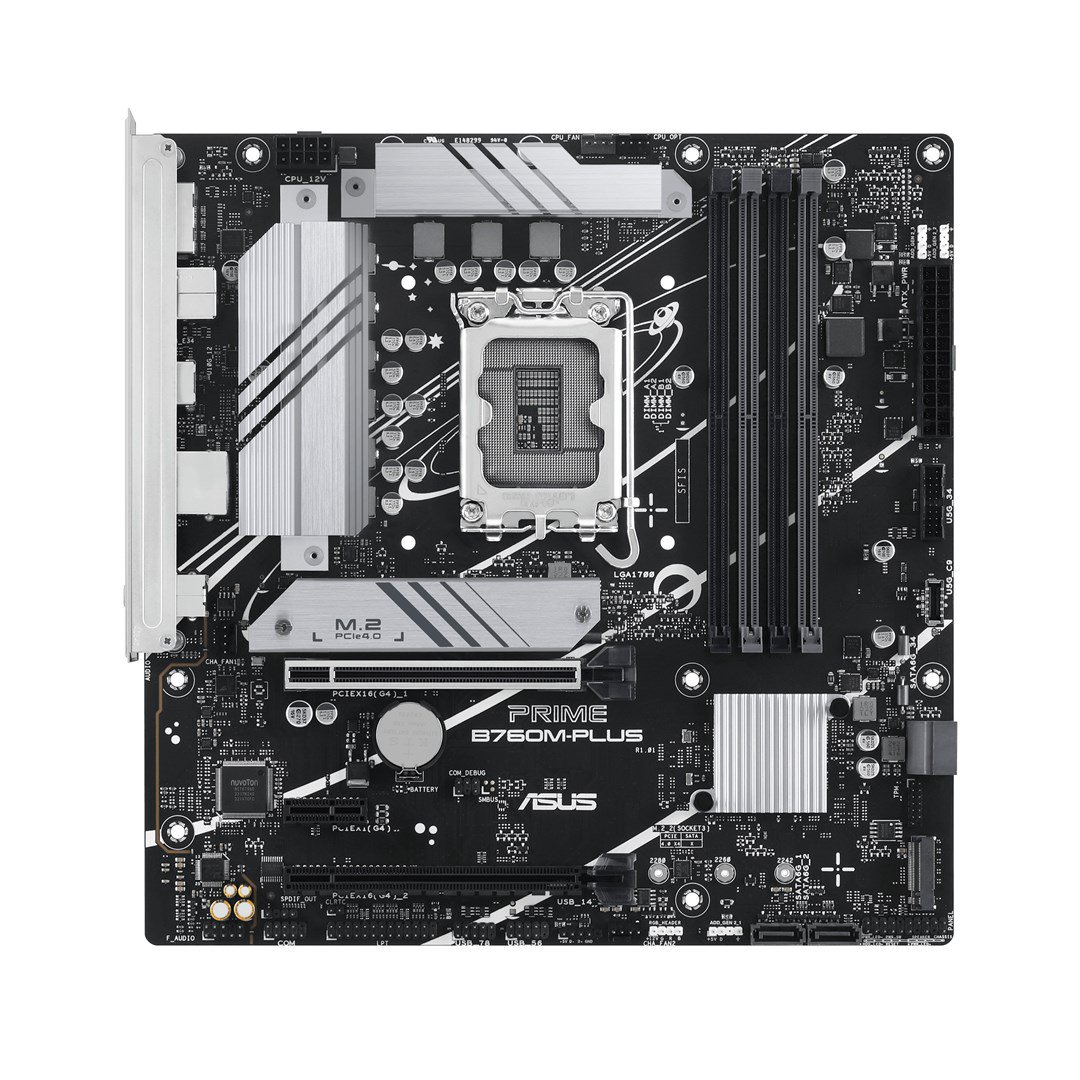

ASUS PRIME B760M-PLUS Intel B760 LGA 1700 „micro ATX“
Slide 1 of 6
Brand:
ASUS
Produkto pavadinimas:
PRIME B760M-PLUS
Prekės kodas:
90MB1GY0-M0EAY0
EAN/UPC kodas:
4711387469910
- Intel LGA 1700 „Intel® Celeron®“, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC „micro ATX“ Intel B760 7.1 kanalai
- DDR5-SDRAM 4 DIMM Maksimali vidinė atmintis: 192 GB
- HDD & SSD M.2, SATA III RAID palaikymas Palaikomų saugojimo tvarkyklių skaičius: 6
- BIOS tipas: UEFI AMI 128 Mbit
- 2.5 Gigabit Ethernet
Specifikacijos
Procesorius
Procesoriaus gamintojas
The manufacturer that produced the processor.
Intel
Procesoriaus lizdas
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1700
Procesorių suderinamumas
A processor which is compatible with this device
„Intel® Celeron®“, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Palaikomi procesoriaus lizdai
The sockets (plugs) for processors that are supported (can be used) by the device.
LGA 1700
Atmintis
Palaikomi atminties tipai
Types of memory which can be used with the product.
DDR5-SDRAM
Atminties angų skaičius
4
Atminties angų tipas
A memory slot
DIMM
Atminties kanalai
Dviejų kanalų
ECC suderinamumas
Ne-ECC
Palaikomi atminties laikrodžio greičiai
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Palaikomas atmintinės taktinis dažnis (didžiausias)
7200 MHz
Maksimali vidinė atmintis
The maximum internal memory which is available in the product.
192 GB
Nebuferizuota atmintis
Duomenų laikymo valdikliai
Palaikomi saugojimo kaupiklių tipai
The type of storage drives the device is compatible with.
HDD & SSD
Palaikomi saugojimo kaupiklių sąsajos
M.2, SATA III
Palaikomų saugojimo tvarkyklių skaičius
How many storage drives can be fit into the product at once.
6
RAID palaikymas
The device uses RAID
RAID lygiai
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 5, 10
Grafika
Paralelinio apdorojimo technologijos parama
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
Nepalaikomas
Vidinis I/O
USB 2.0 jungtys
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
3
USB 3.2 (3.1 1 kart.) jungtys
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
2
SATA III jungčių skaičius
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
S/PDIF out jungtis
Priekinio skydelio audio jungtis
ATX maitinimo jungtis
CPU fan jungtis
Šasi fenų jungčių skaičius
2
EPS maitinimo jungtis (8-kaisčiai)
COM jungčių skaičius
1
TPM jungtis
Vidinis I/O
12 V maitinimo jungtis
RGB LED kontaktų pagrindas
Galinė panelė I/O jungtys
USB 2.0 portų kiekis
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")
4
USB 3.2 2 kart. (3.1 2 kart.) A tipo prievadų skaičius
2
Ethernet LAN (RJ-45) portų kiekis
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
PS/2 portų kiekis
The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.
1
HDMI portų kiekis
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
„DisplayPort“ kiekis
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
Mikrofonas, line-in jack
The socket where a microphone is connected to the device.
Tinklas
Ethernet LAN jungtis
An Ethernet LAN (Local Area Network) interface is present
Eterneto sąsajos tipas
2.5 Gigabit Ethernet
„Wi-Fi“
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Savybės
Pagrindinės plokštės lustas
The chipset connects the microprocessor to the rest of the motherboard.
Intel B760
Garso išvesties kanalai
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 kanalai
Taikoma
What this product is used as a part of (component for).
PC
Motininės plokštės formos faktorius
Design of the motherboard (ATX
„micro ATX“
Motininės plokštės sisteminio valdiklio šeima
The category of motherboard chipset e.g. Intel
Intel
Palaikomos „Windows“ operacinės sistemos
Windows vesions wich can be used with the device.
Windows 10 x64, Windows 11
Plėtotės lizdas
„PCI Express x1 (Gen 4.x)“ lizdai
1
„PCI Express x16“ (4 kartos) lizdai
2
M.2 (M) angų skaičius
2
BIOS
BIOS tipas
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
BIOS atminties dydis
128 Mbit
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
244 mm
Ilgis
The distance from the front to the back of something.
244 mm
Pakuotės turinys
Pridėti kabeliai
SATA
Pridėti sraigtai
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906057400 | ||
| Barkodas | 4711387469910 | ||
| Gamintojo kodas | 90MB1GY0-M0EAY0 | ||
| Gamintojas | ASUS | ||
| Garantija (mėn.) | 36 | ||
| Logistic Code | 0 | ||
*Nuotraukos ir video nuorodos pateikiamos tik iliustraciniais tikslais. Pateikta informacija ir komplektacija gali skirtis priklausomai nuo regiono ar šalies. Prekės pavadinimas pateiktas tiekėjų kaip ir prekių spalva, parametrai, matmenys ir/arba kitos savybės gali atrodyti kitaip ir skirtis nuo originalios prekės, todėl prašome vadovautis prekių savybėmis pagal pateiktą gamintojo barkodą/gaminio kodą. Prekių kiekis ribotas.
