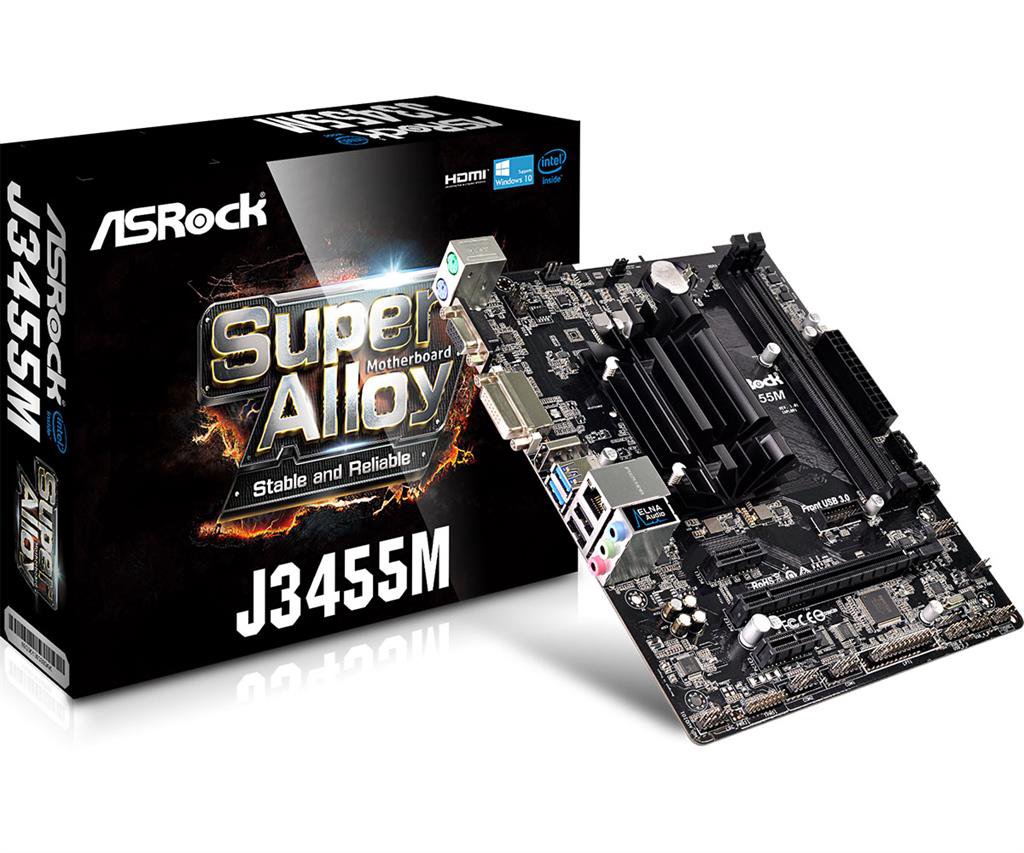

Pagrindinė plokštė ASROCK J3455M
Išparduota
Įveskite el. pašto adresą, telefono nr. ir gaukite priminimą, kai prekė atsiras prekyboje.
Į norų sąrašą
Prekės aprašymas
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Asrock J3455M NA (integruotas CPU) „micro ATX“
Slide 1 of 5
Brand:
Asrock
Produkto pavadinimas:
J3455M
Prekės kodas:
90-MXB450-A0UAYZ
EAN/UPC kodas:
4717677332070
- Intel NA (integruotas CPU) J3455
- PC „micro ATX“ Realtek ALC887 7.1 kanalai
- DDR3-SDRAM, DDR3L-SDRAM 2 DIMM
- SATA III
- Intel HD Graphics 500
- BIOS tipas: UEFI AMI 64 Mbit ACPI versija: 5.0
- Gigabitinis eternetas
Specifikacijos
Procesorius
Procesoriaus gamintojas
The manufacturer that produced the processor.
Intel
Procesoriaus lizdas
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
NA (integruotas CPU)
Procesoriaus modelis
The model number for the processor in a computer.
J3455
Procesoriaus branduoliai
The number of central processing units ('cores') in a processor. Some processors have 1 core
4
Atmintis
Palaikomi atminties tipai
Types of memory which can be used with the product.
DDR3-SDRAM, DDR3L-SDRAM
Atminties angų skaičius
2
Atminties angų tipas
A memory slot
DIMM
Atminties kanalai
Dviejų kanalų
ECC suderinamumas
Ne-ECC
Palaikomi atminties laikrodžio greičiai
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
1333, 1600, 1866 MHz
Nebuferizuota atmintis
Maksimali RDIMM atmintis
16 GB
Duomenų laikymo valdikliai
Palaikomi saugojimo kaupiklių sąsajos
SATA III
Grafika
Integruotas grafikos adapteris
Graphics hardware which is built into the motherboard or CPU
Grafinio adapterio šeima
Intel
Grafikos adapteris
HD Graphics 500
Maksimali rezoliucija
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height
3840 x 2160 pikseliai
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
„DirectX“ versija
DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.
12.0
Palaikoma diskrečioji grafika
Palaikomų ekranų skaičius
The number of displays that can be used with this product.
3
Vidinis I/O
USB 2.0 jungtys
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
3
USB 3.2 (3.1 1 kart.) jungtys
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
SATA III jungčių skaičius
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
2
Priekinio skydelio audio jungtis
ATX maitinimo jungtis
CPU fan jungtis
Šasi fenų jungčių skaičius
1
Šasi intruzijos jungtis
COM jungčių skaičius
2
TPM jungtis
Galinė panelė I/O jungtys
USB 2.0 portų kiekis
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Galinė panelė I/O jungtys
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius
2
Ethernet LAN (RJ-45) portų kiekis
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
PS/2 portų kiekis
The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.
2
VGA (D-Sub) portų kiekis
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
HDMI portų kiekis
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
DVI-D prievadų skaičius
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device
1
USB jungtis
The type of USB connector/port that this product has.
USB A tipo
Tinklas
Ethernet LAN jungtis
An Ethernet LAN (Local Area Network) interface is present
Eterneto sąsajos tipas
Gigabitinis eternetas
LAN kontroleris
Realtek RTL8111E
Wake-on-LAN pasirengimas
Savybės
Garso lustas
Realtek ALC887
Garso išvesties kanalai
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 kanalai
Taikoma
What this product is used as a part of (component for).
PC
Motininės plokštės formos faktorius
Design of the motherboard (ATX
„micro ATX“
Motininės plokštės sisteminio valdiklio šeima
The category of motherboard chipset e.g. Intel
Intel
Maitinimo šaltinio tipas
What the power source is.
ATX
Palaikoma operacinė sistema „Linux“
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Palaikomos „Windows“ operacinės sistemos
Windows vesions wich can be used with the device.
Sertifikavimas
FCC, CE, WHQL, ErP/EuP ready (ErP/EuP ready power supply is required)
Plėtotės lizdas
PCI „Express“ x1 (2.x kart.) angos
2
PCI „Express“ x16 (2.x kart.) angos
Places where PCI Express x16 (Gen 2.x) are placed inside and connected to the computer motherboard.
1
BIOS
BIOS tipas
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
BIOS atminties dydis
64 Mbit
ACPI versija
5.0
Logistikos duomenys
Darniosios sistemos (DS) kodas
84733020
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
226 mm
Ilgis
The distance from the front to the back of something.
178 mm
Pakuotės turinys
Pridėti kabeliai
SATA
Specifikacija
| Pagrindinė specifikacija: | |||
|---|---|---|---|
| RAM Dažnis (MHz) | 1333 MHz | ||
| Atminties tipas | DDR3, DDR3L, non-ECC, Unbuffered | ||
| Maksimali atmintis (GB) | 16 GB | ||
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906002913 | ||
| Barkodas | 4717677332070 | ||
| Gamintojo kodas | J3455M | ||
| Gamintojas | ASROCK | ||
| Garantija (mėn.) | 0 | ||
| Procesoriaus lizdo tipas | Netaikoma | ||
| Garso plokštė | Realtek ALC887 | ||
