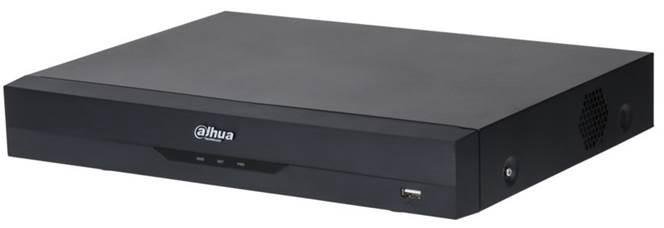

DVR 8CH HDCVI PENTABRID AI/XVR5108HE-4KL-I3 DAHUA
Tik internetu
Kaina
512,00 €
Šią prekę rasite tik internete.
Paskubėkite! Liko mažiau nei 5 vnt.
Į norų sąrašą
Pristatymas ir atsiėmimasRinkitės pristatymą į namus per 7-10 d.d.
Prekės aprašymas
Pentabrid capability: Each channel supports up to 8MP: HDCVI, AHD, TVI, CVBS and IP Video input, Auto-detect
8-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
All channel 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30 fps)
IP: 8+8 channels, each channel up to 8MP
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression
1x SATA interface up to 16 TB storage
VGA/HDMI up to 4K output
RJ-45, 2x USB ports, RS485
No front panel control, 8/1 Audio I/O, 8/3 Alarm I/O
Mini 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 8 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Free IP monitoring software available
8-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
All channel 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30 fps)
IP: 8+8 channels, each channel up to 8MP
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression
1x SATA interface up to 16 TB storage
VGA/HDMI up to 4K output
RJ-45, 2x USB ports, RS485
No front panel control, 8/1 Audio I/O, 8/3 Alarm I/O
Mini 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 8 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Free IP monitoring software available
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Dahua Technology DH-XVR5108HE-4KL-I3 skaitmeninis vaizdo įrašymo įrenginys (DVR) Juoda
Slide 1 of 3
Brand:
Dahua Technology
Produkto pavadinimas:
DH-XVR5108HE-4KL-I3
Prekės kodas:
DH-XVR5108HE-4KL-I3
- 3840 x 2160 pikseliai Kanalų kiekis: 8 kanalai
- Ethernet LAN jungtis
- Juoda
Specifikacijos
Veikimo charakteristikos
Maksimali vaizdo raiška
This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible.
3840 x 2160 pikseliai
Video suspaudimo formatai
H.264, H.264+, H.265, H.265+
Palaikomi audio formatai
The audio formats which this device or software can read/use e.g. MP3
G.711 A-law, G.711 μ-law, PCM
Vaizdo fiksavimo greitis (PAL)
25 fps
Vaizdo fiksavimo greitis (NTSC)
30 fps
Kanalų kiekis
The number of channels the device has. There can be an individual input or output for each channel.
8 kanalai
Produkto spalva
The colour e.g. red
Juoda
Analoginio signalo formato sistema
The supported protocols for exchanging analog signals.
NTSC, PAL
Numatyta operacinė sistema
Type of operating system on a device e.g. IOS on Apple devices
Įdiegta „LINUX“
Bitų perdavimo sparta
64 Kbit/ai
Ryšys
HDMI portų kiekis
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
VGA („D-Sub“) išvesties prievadai
1
USB 2.0 portų kiekis
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")
1
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius
1
RS-485 prievadai
1
Tinklas
Ethernet LAN jungtis
An Ethernet LAN (Local Area Network) interface is present
Eterneto sąsajos tipas
Gigabitinis eternetas
Palaikomi tinklo protokolai
Network protocols tested as compatible with this product e.g. FTP
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
325 mm
Ilgis
The distance from the front to the back of something.
257,1 mm
Aukštis
The measurement of the product from head to foot or from base to top.
55 mm
Svoris
Weight of the product without packaging (net weight). If possible
1,24 kg
Pakuotės duomenys
Pakuotės plotis
The distance from one side of the packaging to the other.
372 mm
Pakuotės gylis
The distance from the front to the back of the packaging.
117 mm
Pakuotės aukštis
The distance from the top to the bottom of the packaging.
308 mm
Paketo svoris
Weight of the packaged product.
1,92 kg
Aplinkos sąlygos
Darbo temperatūros diapazonas (TT)
The minimum and maximum temperatures at which the product can be safely operated.
-10 - 55 °C
Darbo santykinės drėgmės diapazonas
10 - 90%
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 489906000648 | ||
| Barkodas | 6923172535191 | ||
| Gamintojo kodas | DH-XVR5108HE-4KL-I3 | ||
| Gamintojas | DAHUA | ||
| Garantija (mėn.) | 36 | ||
