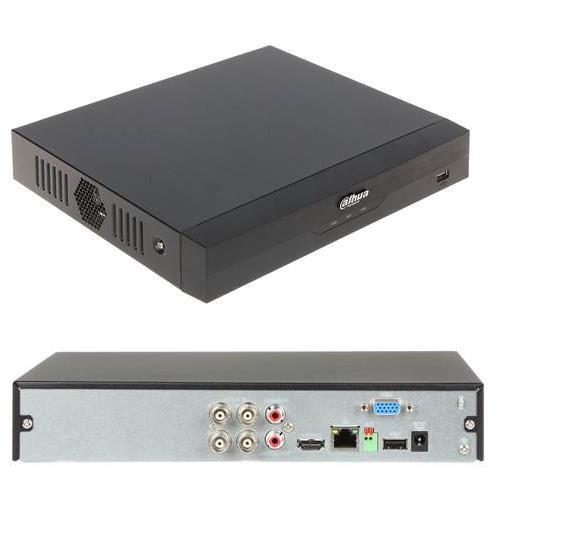

DVR 4CH HDCVI PENTABRID AI/XVR5104HS-4KL-I3 DAHUA
Tik internetu
Kaina
119,00 €
Šią prekę rasite tik internete.
Paskubėkite! Liko mažiau nei 5 vnt.
Į norų sąrašą
Pristatymas ir atsiėmimasRinkitės pristatymą į namus per 7-10 d.d.
Prekės aprašymas
Pentabrid capability: Each channel supports up to 8MP: HDCVI, AHD, TVI, CVBS and 8MP IP Video input, Auto-detect
4-channel BNC interface
HDCVI/AHD/HD-TVI recording: 4K; 6MP; 5MP; 4MP; 3MP; 4M-N; 1080P; 720P; 960H; D1; CIF
Record Rate: All channel 4K (1 fps–7 fps); 6MP (1 fps–10 fps); 5MP (1 fps–12 fps); 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps)
IP: 4+4 channels, each channel up to 8MP; Max 64Mbps Incoming Bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression
1x SATA interface up to 10 TB storage
VGA/HDMI up to 3840 × 2160 output
RJ-45, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O
Compact 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Smart fan, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Up to 1 channel video stream ( analog channel ) Perimeter Protection
Up to 4 channels video stream ( analog channel ) SMD Plus
Up to 1 channel video stream (analog channel ) human face recognition
IoT & POS functionalities
Free IP monitoring software available
4-channel BNC interface
HDCVI/AHD/HD-TVI recording: 4K; 6MP; 5MP; 4MP; 3MP; 4M-N; 1080P; 720P; 960H; D1; CIF
Record Rate: All channel 4K (1 fps–7 fps); 6MP (1 fps–10 fps); 5MP (1 fps–12 fps); 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps)
IP: 4+4 channels, each channel up to 8MP; Max 64Mbps Incoming Bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression
1x SATA interface up to 10 TB storage
VGA/HDMI up to 3840 × 2160 output
RJ-45, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O
Compact 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Smart fan, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Up to 1 channel video stream ( analog channel ) Perimeter Protection
Up to 4 channels video stream ( analog channel ) SMD Plus
Up to 1 channel video stream (analog channel ) human face recognition
IoT & POS functionalities
Free IP monitoring software available
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija
Dahua Technology XVR5104HS-4KL-I3 Juoda
Slide 1 of 3
Brand:
Dahua Technology
Produkto pavadinimas:
XVR5104HS-4KL-I3
Prekės kodas:
DH-XVR5104HS-4KL-I3
EAN/UPC kodas:
6939554930430
- 3840 x 2160 pikseliai Kanalų kiekis: 4 kanalai
- Vaizdo judesio detekcija
- Ethernet LAN jungtis
- Kietojo disko sąsaja: SATA 16 TB
- Maitinimo tipas: DC
- Juoda
Specifikacijos
Veikimo charakteristikos
Maksimali vaizdo raiška
This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible.
3840 x 2160 pikseliai
Video suspaudimo formatai
H.264, H.264+, H.265, H.265+
Palaikomi audio formatai
The audio formats which this device or software can read/use e.g. MP3
G.711 A-law, G.711 μ-law, PCM
Atsarginio atkūrimo funkcija
The function if the main power source fails.
Video gavimo greitis
30 fps
Vaizdo fiksavimo greitis (PAL)
25 fps
Vaizdo fiksavimo greitis (NTSC)
30 fps
Vaizdo signalo dingimo aptiktis
Vaizdo judesio detekcija
Kanalų kiekis
The number of channels the device has. There can be an individual input or output for each channel.
4 kanalai
Produkto spalva
The colour e.g. red
Juoda
Numatyta operacinė sistema
Type of operating system on a device e.g. IOS on Apple devices
Įdiegta „LINUX“
PTZ kontrolė
Rėmo pajėgumas
The spase that device fill in rack.
1U
Sertifikavimas
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
Ryšys
Vaizdo signalo įvesties kanalai
The number of channels for video input that the device features.
4 kanalai
BNC įvesties prievadai
Ports (sockets) to connect BNC inputs. The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable.
4
HDMI portų kiekis
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Audio įėjimas
The type of audio input that the device requires
1
Audio išeiga
The type of audio output that the device produces
1 RCA
USB 2.0 portų kiekis
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
RS-485 prievadai
1
Tinklas
Ethernet LAN jungtis
An Ethernet LAN (Local Area Network) interface is present
Tinklas
Eterneto sąsajos tipas
Greitas eternetas
Ethernet LAN (RJ-45) portų kiekis
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Palaikomi tinklo protokolai
Network protocols tested as compatible with this product e.g. FTP
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Disko tvarkyklė
Palaikomų kietūjų diskų skaičius
The total number of hard drives that can be used in/with this product.
1
Kietojo disko sąsaja
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
SATA
Maksimali kietojo disko talpa
16 TB
Energijos valdymas
Maitinimo tipas
The type of power supply which this product uses.
DC
DC įtampa
12 V
Energijos suvartojimas
Amount of power consumed by this model
7 W
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
260 mm
Ilgis
The distance from the front to the back of something.
237,9 mm
Aukštis
The measurement of the product from head to foot or from base to top.
47,6 mm
Svoris
Weight of the product without packaging (net weight). If possible
530 g
Pakuotės duomenys
Pakuotės plotis
The distance from one side of the packaging to the other.
333 mm
Pakuotės gylis
The distance from the front to the back of the packaging.
315 mm
Pakuotės aukštis
The distance from the top to the bottom of the packaging.
89 mm
Paketo svoris
Weight of the packaged product.
1,07 kg
Ekranas
Įmontuotas ekranas
A display which is part of the product
Aplinkos sąlygos
Darbo temperatūros diapazonas (TT)
The minimum and maximum temperatures at which the product can be safely operated.
-10 - 55 °C
Darbo santykinės drėgmės diapazonas
10 - 90%
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 489906000625 | ||
| Barkodas | 6939554930430 | ||
| Gamintojo kodas | DH-XVR5104HS-4KL-I3 | ||
| Gamintojas | DAHUA | ||
| Garantija (mėn.) | 36 | ||
