Axagon Multiport USB-C 5Gbps TRIPLE 4K DISPLAY hub HMC-4KX3
Tik internetu
Šią prekę rasite tik internete.
Į norų sąrašą
Pristatymas ir atsiėmimasRinkitės pristatymą į namus per 7-10 d.d.
Prekės aprašymas
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija

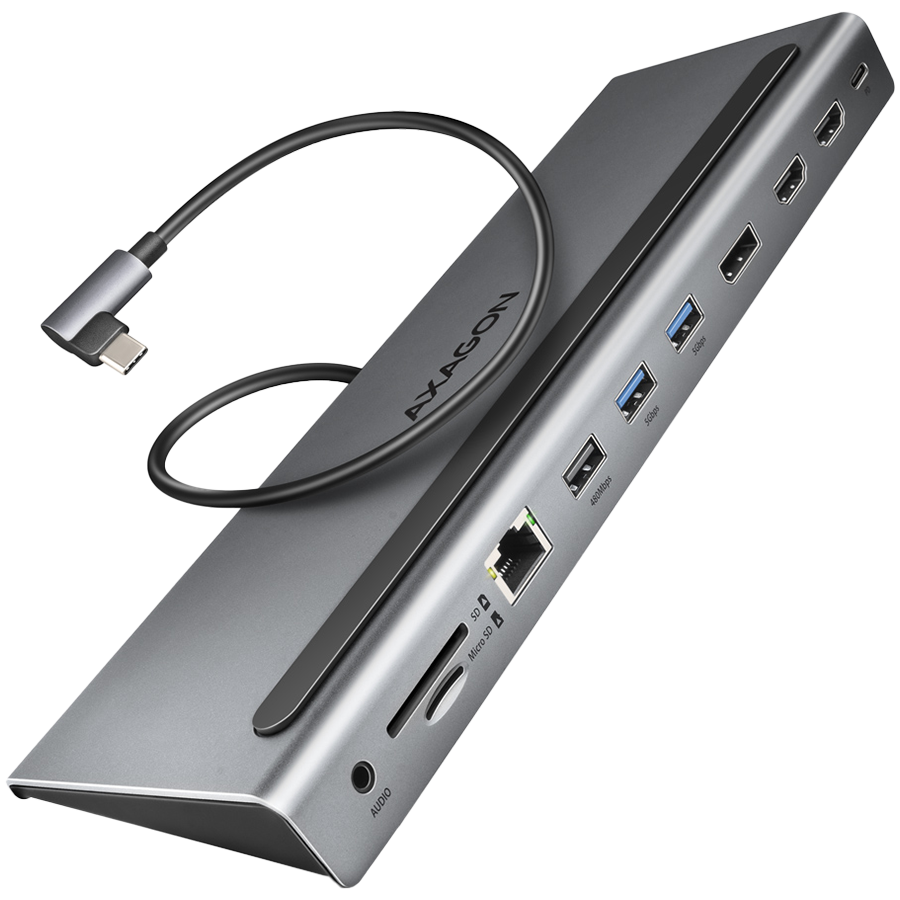

Axagon HMC-4KX3 knyginių kompiuterių dokas / jungčių replikatorius Vielinis USB 3.2 Gen 1 (3.1 Gen 1) Type-C Pilka
Slide 1 of 14
Brand:
Axagon
Produkto pavadinimas:
HMC-4KX3
Prekės kodas:
HMC-4KX3
EAN/UPC kodas:
8595247907608
- Vielinis
- Priimančioji sąsaja: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- „USB Power Delivery“
- Ethernet LAN jungtis 10,100,1000 Mbit/ai Wake-on-LAN pasirengimas
- Auto MDI/MDI-X Pilnai abipusis (duplex) Jumbo Frames palaikymas
- MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC
- „Plug and Play“ funkcija
Specifikacijos
Ryšys
Ryšio technologija
The technology that enables connectivity of the device, e.g. wired or wireless.
Vielinis
Priimančioji sąsaja
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 portų kiekis
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius
2
„USB PowerShare“ prievadų skaičius
1
„USB Power Delivery“
USB maitinimo šaltinio peržiūra
3.0
USB maitinimo tiekimas iki
100 W
HDMI portų kiekis
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
HDMI versija
2.3
„DisplayPort“ kiekis
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
„DisplayPort“ versija
1.4
Jungtinis ausinių / mikrofono prievadas
Ausinių išvestys
Number of sockets /ports where headphones are connected.
1
Ausinių jungtis
How headphones connect to a device e.g. wirelessly or via a cable and connector.
3,5 mm
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP versija
1.4/2.3
Tinklas
Ethernet LAN jungtis
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) portų kiekis
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Eterneto LAN duomenų perdavimo norma
The different speed levels of the Ethernet LAN connection.
10, 100, 1000 Mbit/ai
Wake-on-LAN pasirengimas
Tinklo standartai
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Jumbo Frames palaikymas
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Pilnai abipusis (duplex)
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Veikimo charakteristikos
Integruotas kortelių skaitytuvas
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Suderinamos atminties kortelės
Types of memory cards which can be used with this product.
MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC
Duomenų perdavimo sparta
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
5 Gbit/s
HD tipas
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maksimali skaitmeninė raiška
4096 x 2160 pikseliai
Maksimalus atnaujinimo dažnis
240 Hz
Hot-Plug palaikymas
Device has hot-plug capability, which means that user can replace system components without shutting down the system.
Produkto spalva
The colour e.g. red, blue, green, black, white.
Pilka
Lizdo sąsajos
A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports.
3.5mm, DisplayPort, HDMI, RJ-45, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Veikimo charakteristikos
LED indikatoriai
„Plug and Play“ funkcija
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Įkrovimo funkcija
Korpuso medžiaga
What the casing of the product is made of.
Aliuminis
Kilmės šalis
Country where the device is made. Aka Country of manufacture (COM).
Kinija
Modelio suderinamumas
What other brands this brand can be used with.
Universalus
Sertifikavimas
CE
Garsas
Įmontuoti garsiakalbiai
The device contains speaker(s) to produce sound.
Įmontuotas mikrofonas
Microphone that is found inside the product.
Aušinimas
Įmontuotas ventiliatorius
Energijos valdymas
Maitinimo šaltinio tipas
What the power source is.
USB
Maitinimo jungtis
C tipo USB
USB kabelio ilgis
0,4 m
Programinė įranga
Palaikomos „Windows“ operacinės sistemos
Windows vesions wich can be used with the device.
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Palaikomos MAC operacinės sistemos
Mac operating systems e.g. OS X can be used with the device.
Palaikoma operacinė sistema „Linux“
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Palaikomos serverio valdymo sistemos
Palaikomos mobiliosios operacinės sistemos
The operating systems e.g. Android, iOS, that can be used with the mobile device.
Kitos palaikomos operacinės sistemos
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
256 mm
Ilgis
The distance from the front to the back of something.
90 mm
Aukštis
The measurement of the product from head to foot or from base to top.
24 mm
Svoris
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
317 g
Pakuotės duomenys
Kiekis pakuotėje
1 vnt
Pakuotės plotis
The distance from one side of the packaging to the other.
270 mm
Pakuotės gylis
The distance from the front to the back of the packaging.
135 mm
Pakuotės aukštis
The distance from the top to the bottom of the packaging.
35 mm
Paketo svoris
Weight of the packaged product.
420 g
Pakuotės turinys
Pridėti kabeliai
Iš C tipo USB į C tipo USB
Instrukcija
Technical details
Atitikties sertifikatai
RoHS
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999902028247 | ||
| Barkodas | 8595247907608 | ||
| Gamintojo kodas | HMC-4KX3 | ||
| Gamintojas | AXAGON | ||
| Garantija (mėn.) | 24 | ||
| Papildoma informacija | 0 | ||
